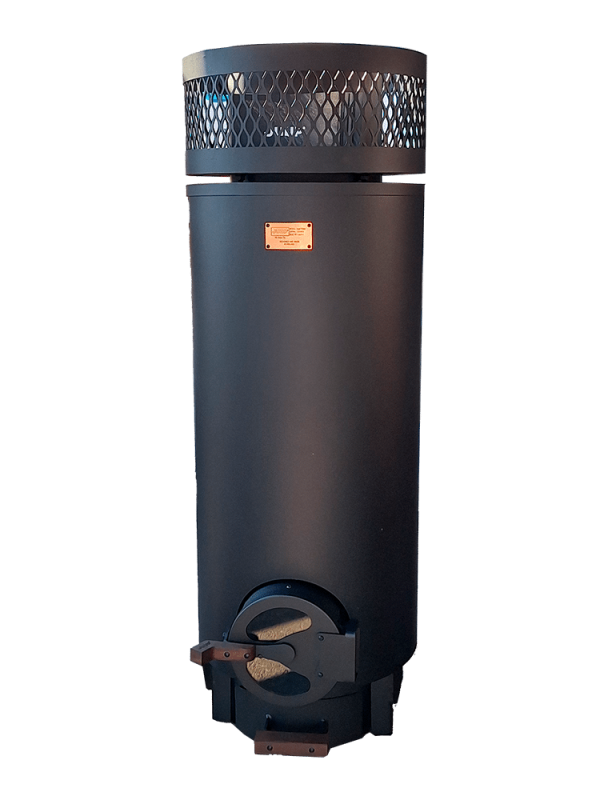

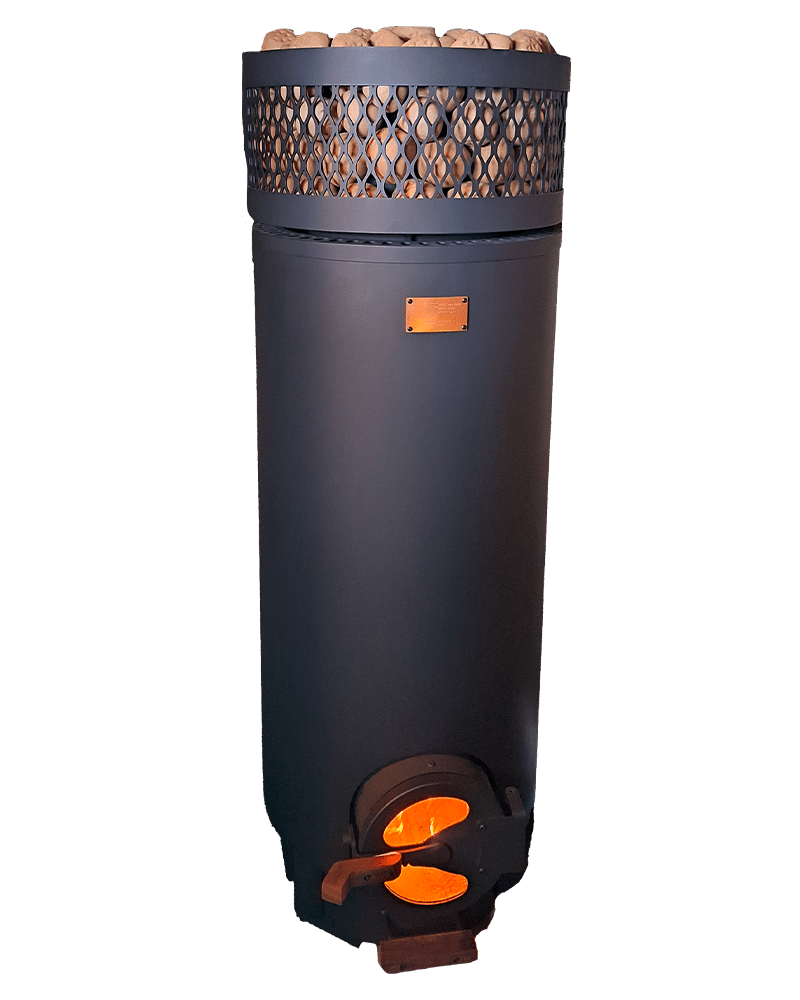

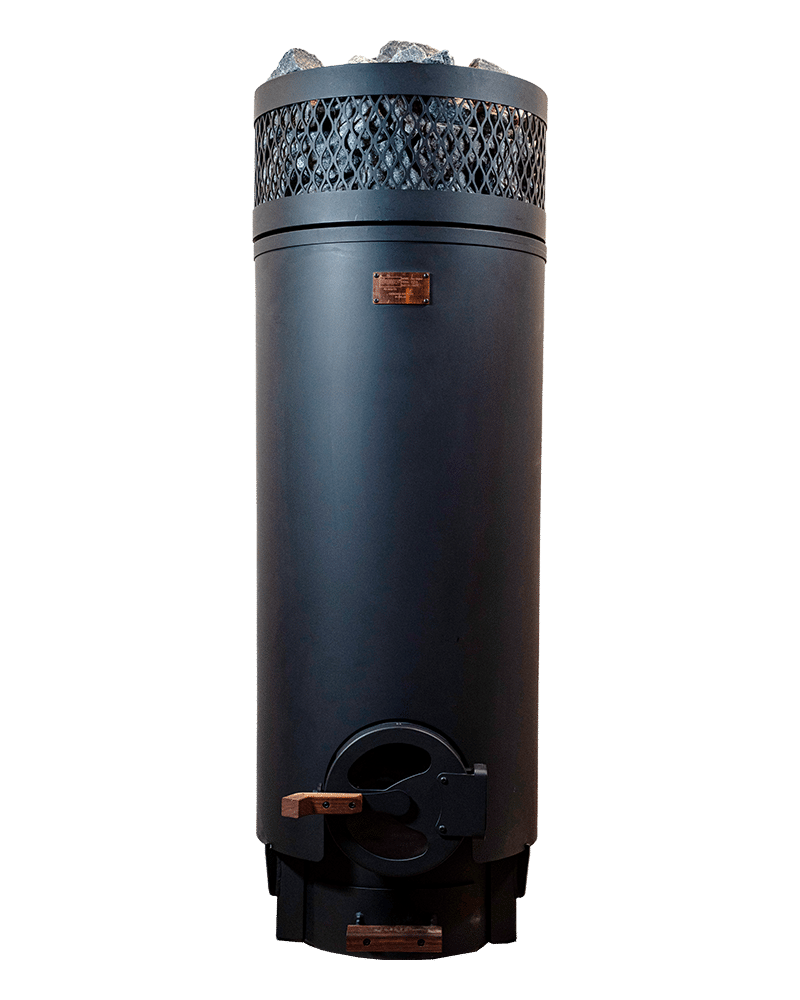

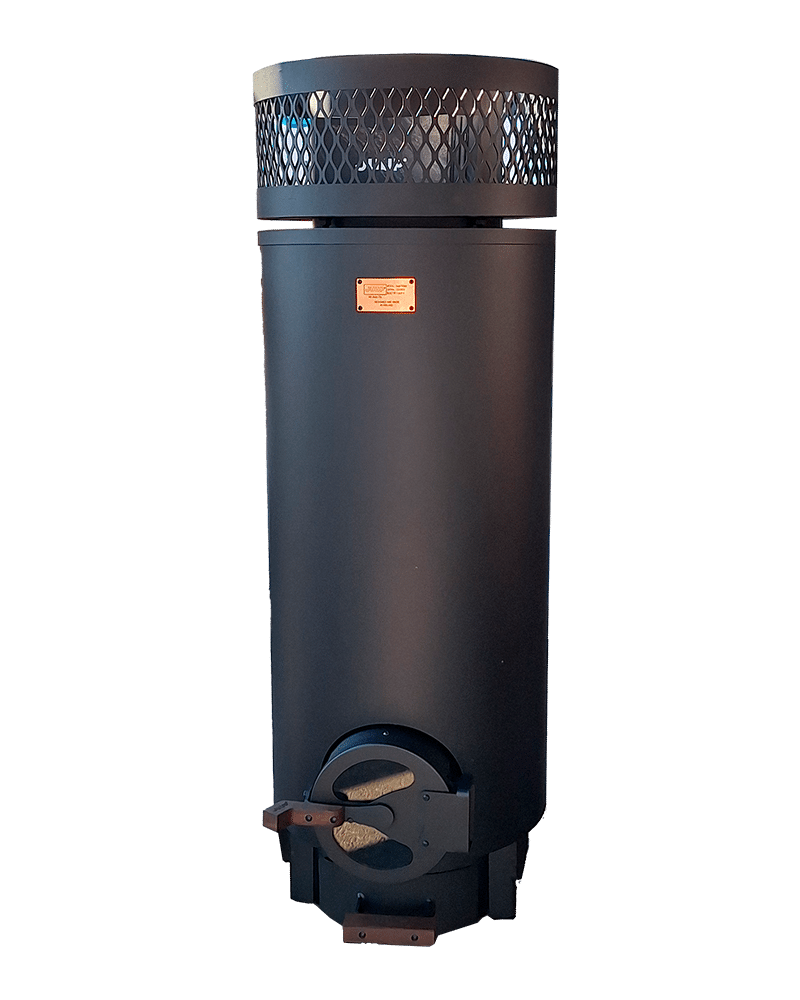

Juup Gösta -Punos
Versatile löyly
The Gösta Punos holds approximately 65–75 kg of stones. The stones sit directly above the firebox in the stone basin, allowing them to heat up quickly and ensuring that every drop of löyly water evaporates into the sauna.
Water that does not evaporate immediately on contact with the hot stones flows to the bottom of the basin and evaporates gradually. This creates moist, soft and long-lasting löyly. By adjusting the stove temperature and the amount of water, you can create exactly the kind of löyly you prefer.
Finnish craftsmanship
Each Juup artisan sauna stove is unique. To ensure uncompromising quality and durability for decades, one and the same person will manufacture the stove from start to finish. Each stove has a nameplate showing the stove model, serial number and the name of the builder. The stove has been granted the Finnish Avainlippu. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs in Finland.
NOTE! The delivery time for Gösta stoves varies from 3-5 weeks depending on the order quantity. The production time can be inquired in advance by e-mail sales@juup.fi or by phone on +358 040 737 1571. NOTE! We currently only ship within Finland. For international sales, pleace contact us!
Gösta is designed for saunas between 18 and 35 m³, combining the efficiency of the Original with the löyly characteristics of the Iivari. Its overall efficiency is over 73%.
Price range: 3300,00 € through 3380,00 € incl. 24% VAT
Juup Gösta stove is a Finnish handicraft.
A Finnish sauna innovation designed, developed and built by sauna enthusiasts. Already in three generations.
The easy-to-use and CE-marked stove heats up quickly, using less wood than traditional wood-burning stoves.
The efficiency of the Gösta heater is over 73% and it is suitable for saunas of 15 m³ and larger.
Ab Juup Oy has been granted the Avainlippu certification. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs in Finland.
* Type tested according to EN 15821: 2010. Test facility identification number NB 2450.
Versatile löylys
We wanted to develop a stove that provides the best and most versatile steam. We have taken the long, moist, and soft steam of a smoke sauna as our model.
The ‘secret’ of the steam in smoke saunas lies in the way the stones are heated. The stones at the bottom get incredibly hot, while the surface stones remain relatively lukewarm throughout the sauna session. When water is poured onto the stones, it doesn’t evaporate immediately from the surface stones, but flows down to the bottom of the stone compartment where evaporation occurs. As this steam travels through the cooler stones, a condensation process begins which softens and moistens the steam.

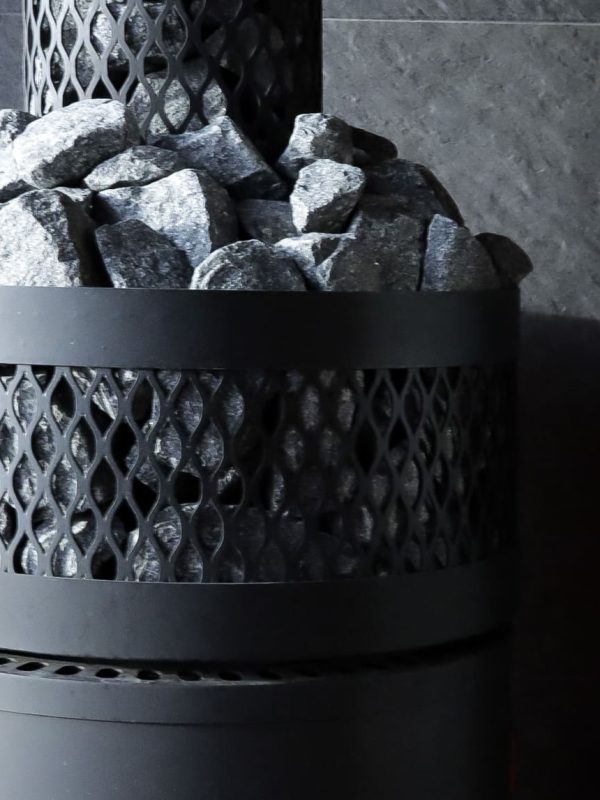

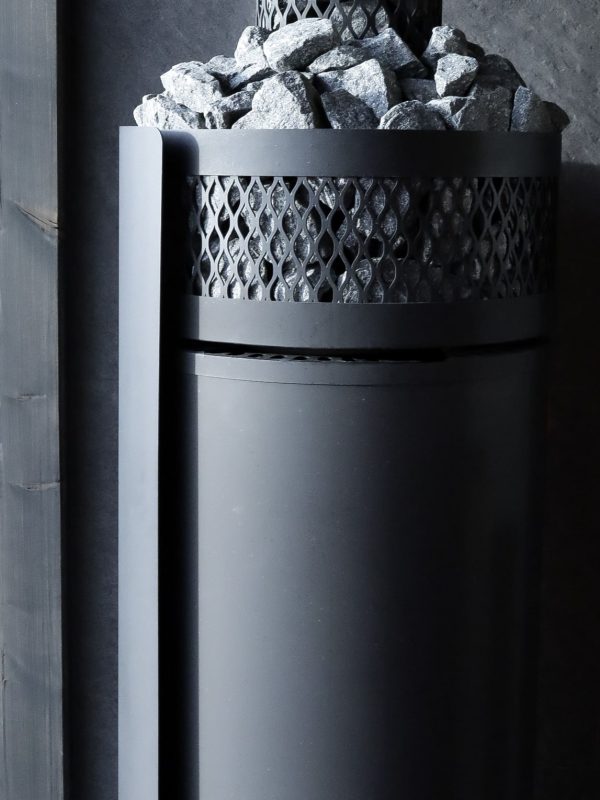

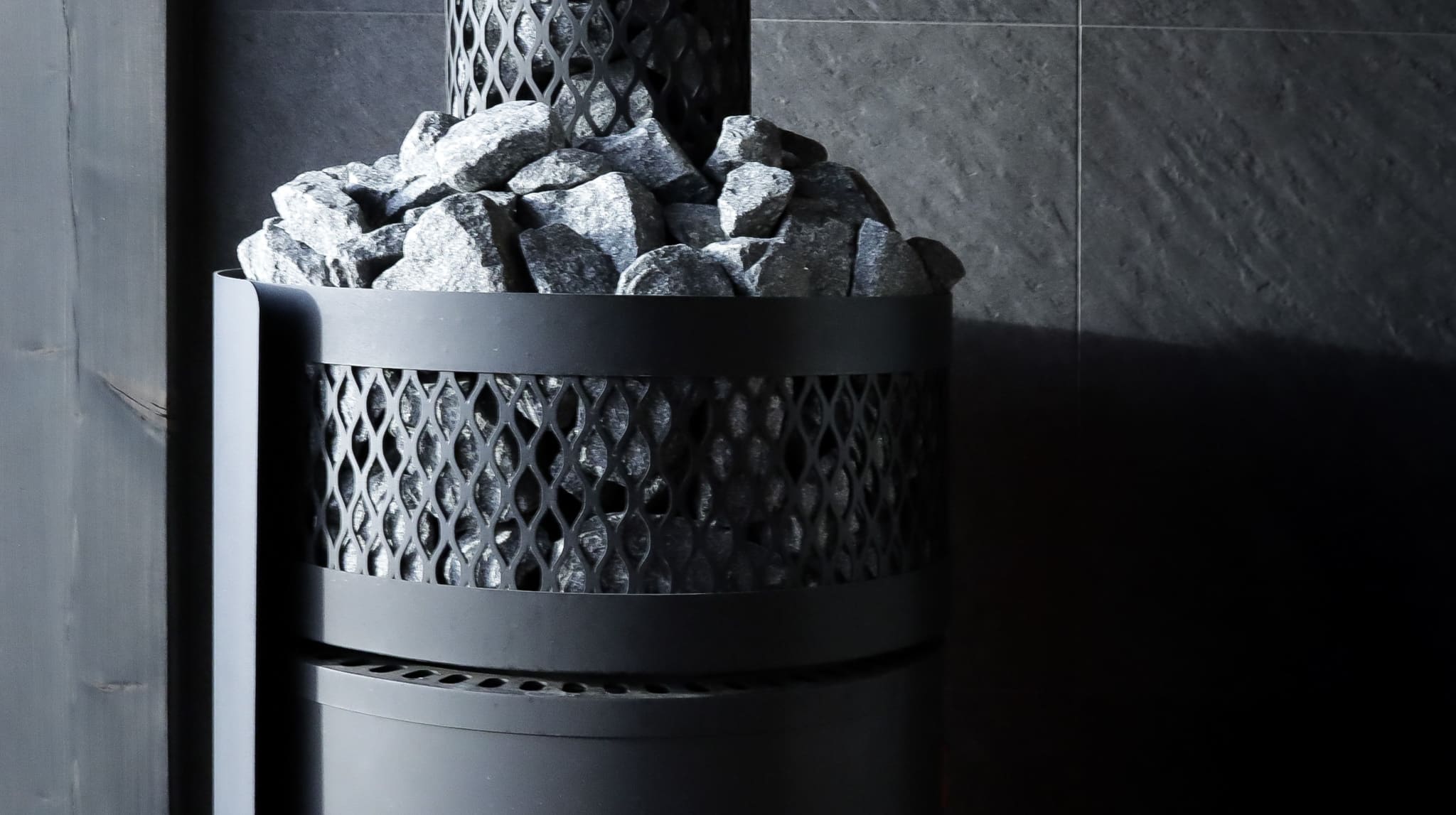

In Juup stoves, the stones are directly above the firebox in a “stone bowl.” This allows the stones to heat up quickly and every drop of water to evaporate into the sauna. The stones at the bottom heat up first and remain hot throughout the sauna session, just like in a smoke sauna.
The stones on the surface of the stone bowl heat up slowly, allowing for the creation of different types of steam during the sauna session. The water that doesn’t evaporate upon contact with the hot stones flows down to the bottom of the bowl and evaporates gradually. This results in soft, moist and long-lasting löyly.
By adjusting the stove’s temperature and the amount of water, you can create exactly the kind of steam that you like. Crisp steam is created when you throw small amounts of water onto the hot stones on the edges frequently. If you prefer soft and moist steam, you can pour a larger amount of water on the lukewarm stones. This creates a steam bath-like löyly.
Technical information
Sauna room volume (min / max) | 18–35 m³ |
Temperature class required for smoke flue | T600 |
Connection hole diameter | 115 mm |
Weight of stones (max.) | A 55 / B 95 kg |
Net weight | 130 kg |
Width x Depth x Height | 515 x 590 x 1430 mm |
+ adjustable feet | 0 – 50 mm |
Safety Distances (to flammable materials, sides / top) | 200 / 800 mm |
Safety Distances (to non-combustible materials) | 50 mm |
Hatch size | Ø 210 mm |
Performance level at rated power
Flue gas temperature (average – max) | 377,2 – 439,6 °C |
Rated power | 30,8 kW |
Heat output into the sauna room | 22,5 kW |
Carbon monoxide emissions (red. O₂ 13 %) | 3678 mg/m³ (n) |
Carbon monoxide emissions % (red. O₂ 13 %) | 0,29 % |
Overall efficiency | 73,1 % |
Ignition charge | 5,5 kg |
Additional contribution | 2 kg |
The Juup® Gösta heater is type-tested using testing methods according to the EN 15821:2010 standard.
Identification number of the test facility: NB 2450.
Instructions & Brochures

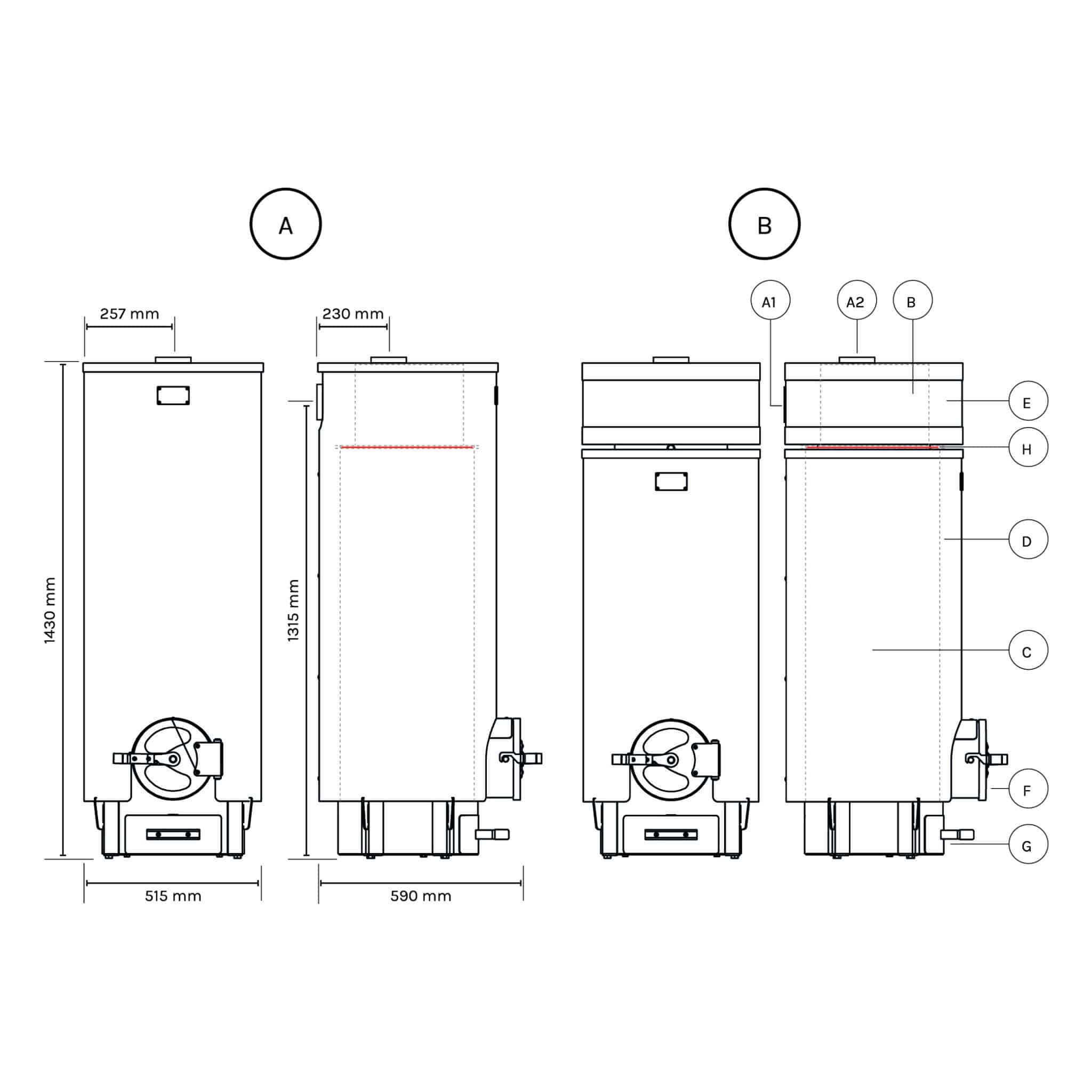

Parts of the stove
A1. Flue connection (side installation) Ø115 mm / Cleaning hatch 1
A2. Flue connection (top installation) Ø115 mm / Cleaning hatch 2
B. Removable stone basin
C. Firebox
D. Outer casing

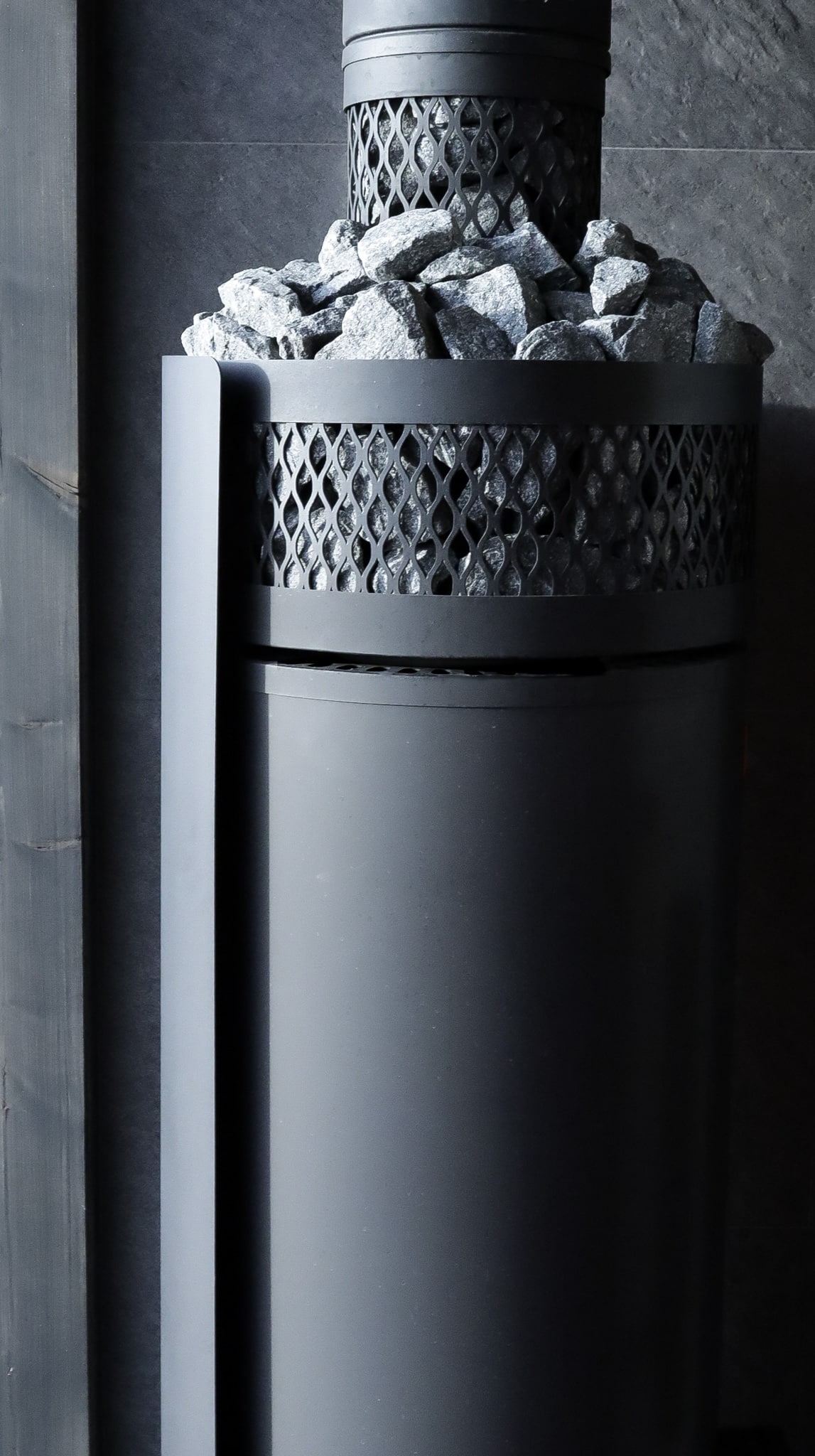

E. Stone cage (Model B)

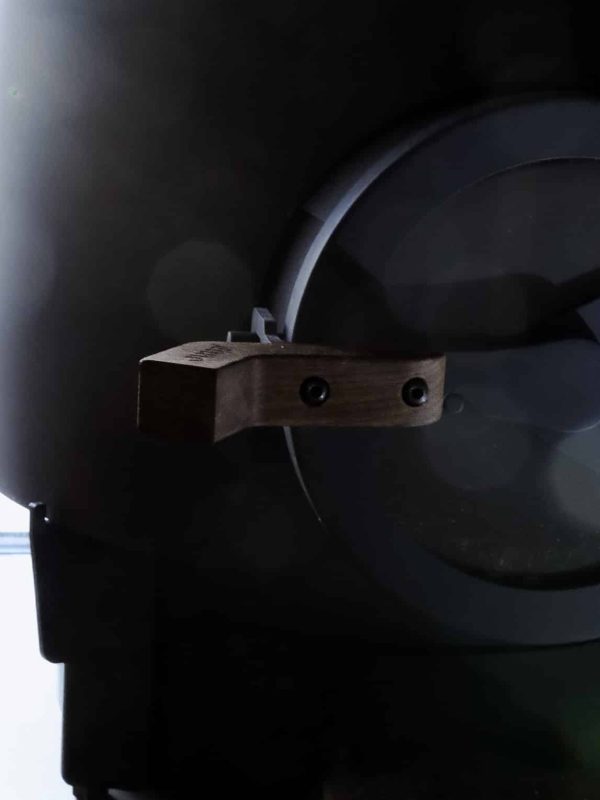

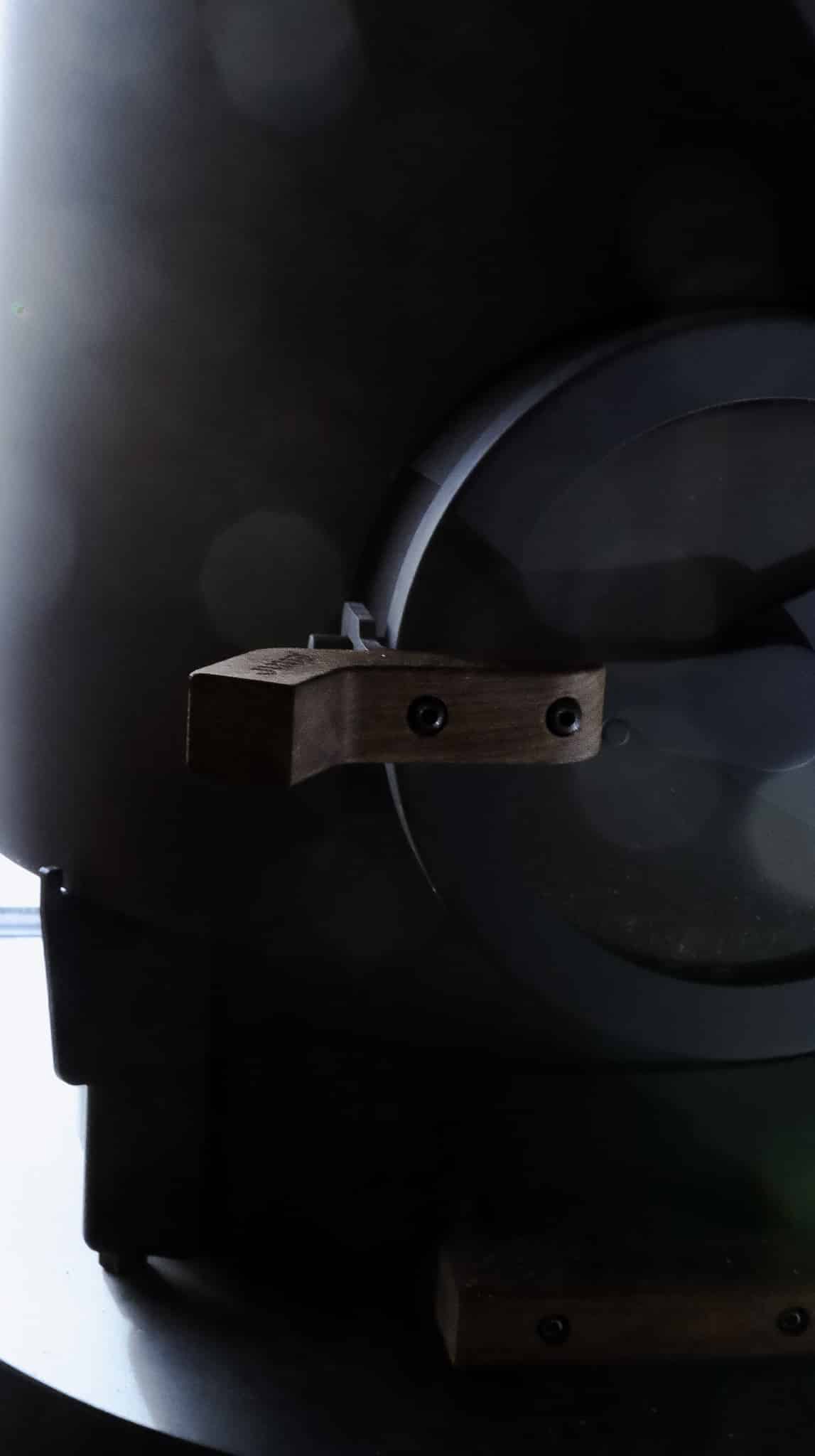

F. Door (Ø210 mm)

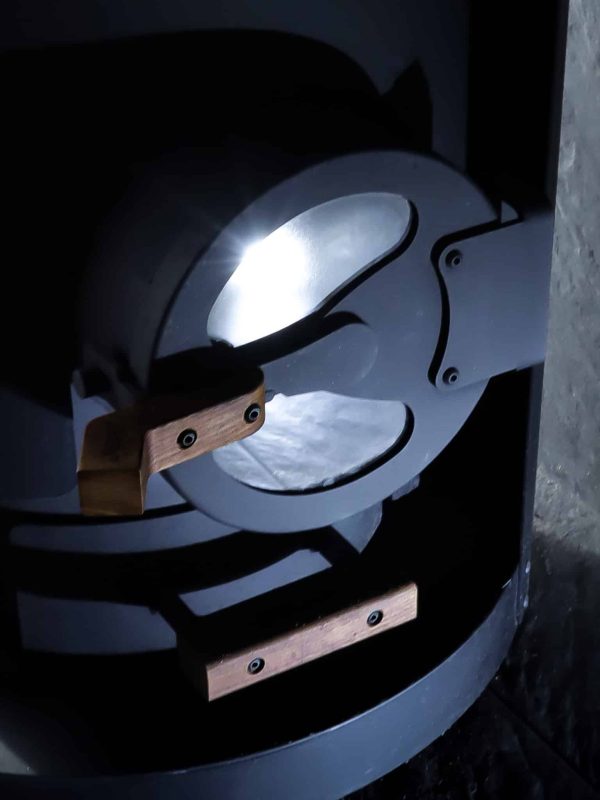

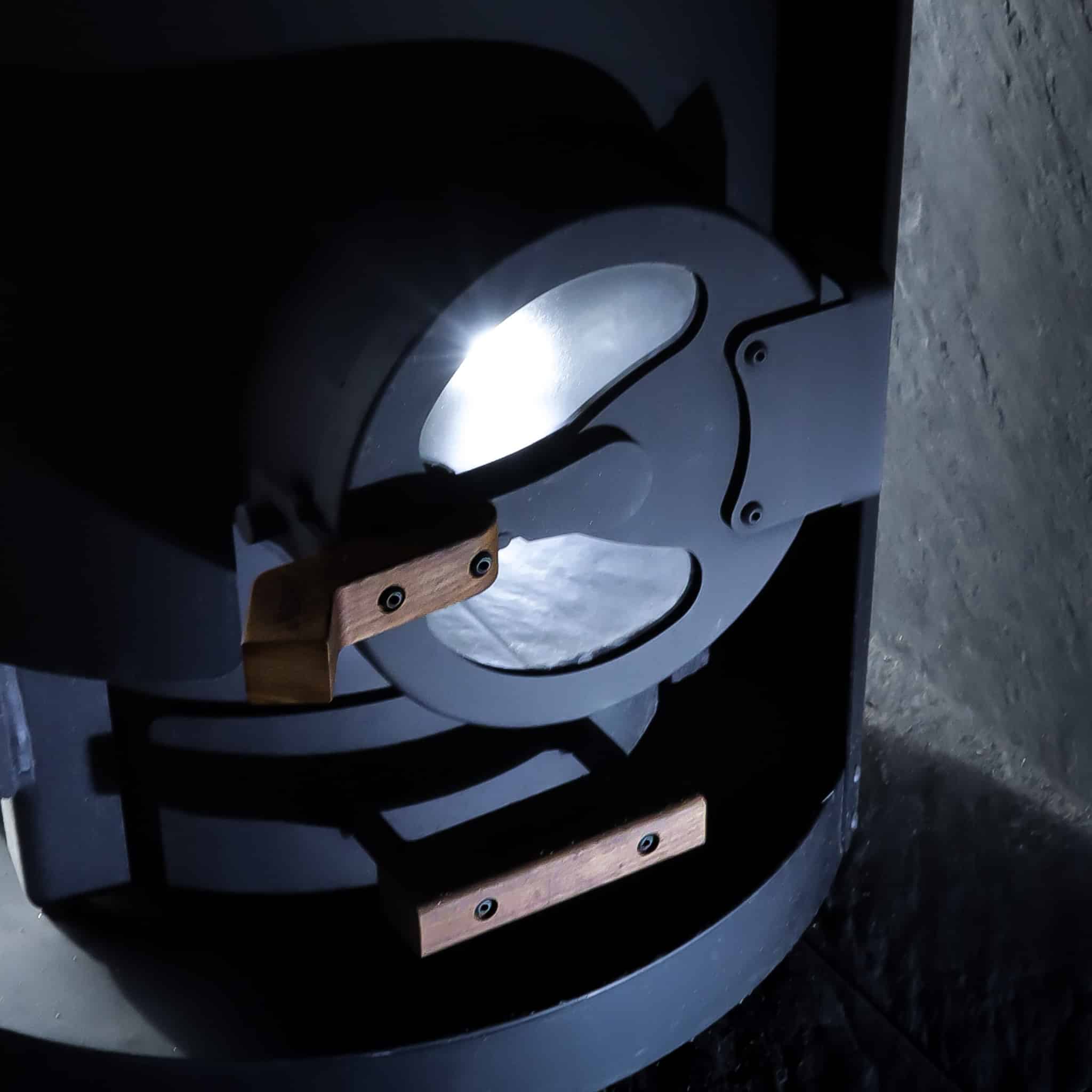

G. Ash door and draught control
H. Sealing rope
Warranty
The heater body and fireplace are constructed of 3 mm carbon steel and the fireplace has only one weld seam. This allows the stove to last from one generation to the next. The original stoves, built by Gösta Juup in the 1950s, are still in use.
Due to its durable construction, the stove comes with a 5-year warranty for private use.
