Juup Iivari
Artesan sauna stove
COMPACT STOVE FOR LONGER LÖYLY
Juup Iivari is the next generation of Juup Original, born of the real need of our customers. Juup Iivari is very similar in structure to its predecessor, but it is better suited for smaller sauna rooms. Like its predecessor, it offers very versatile löylys.

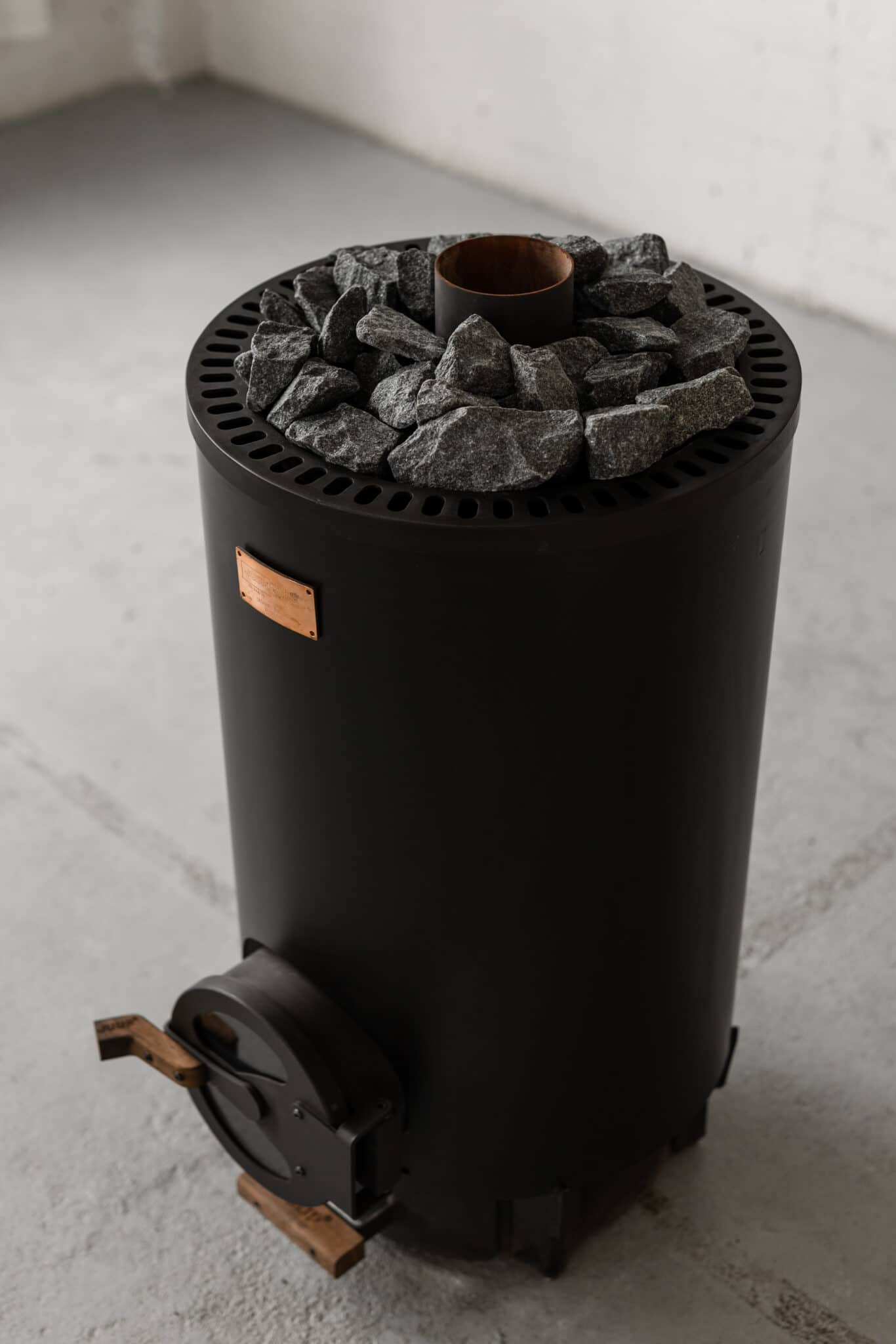

The stone cradle of Juup Iivari fits approx. 45 kg of sauna stones, depending on the size and material of the stones.
Thanks to its robust and durable construction, the stove carries a 10-year warranty in home use.

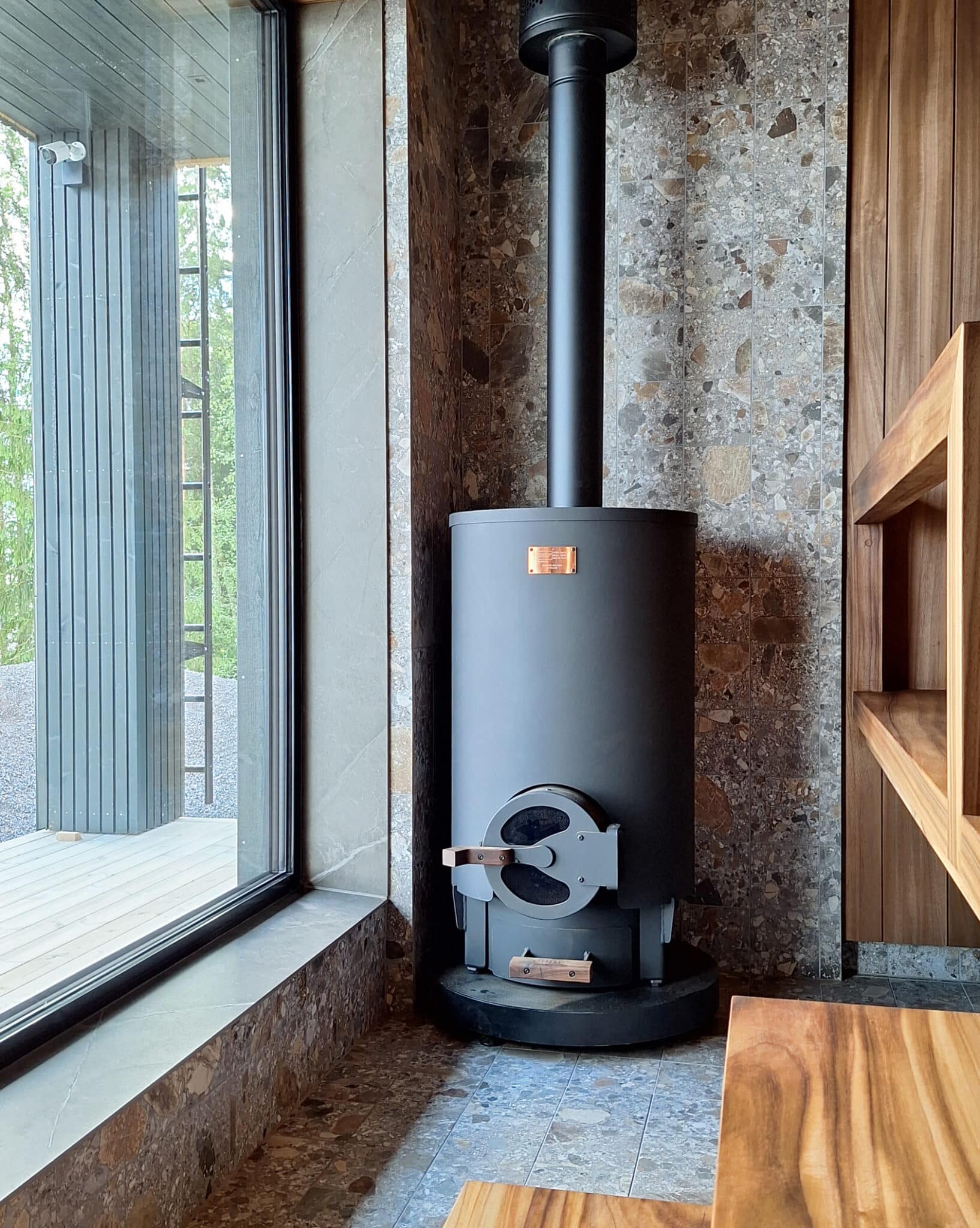

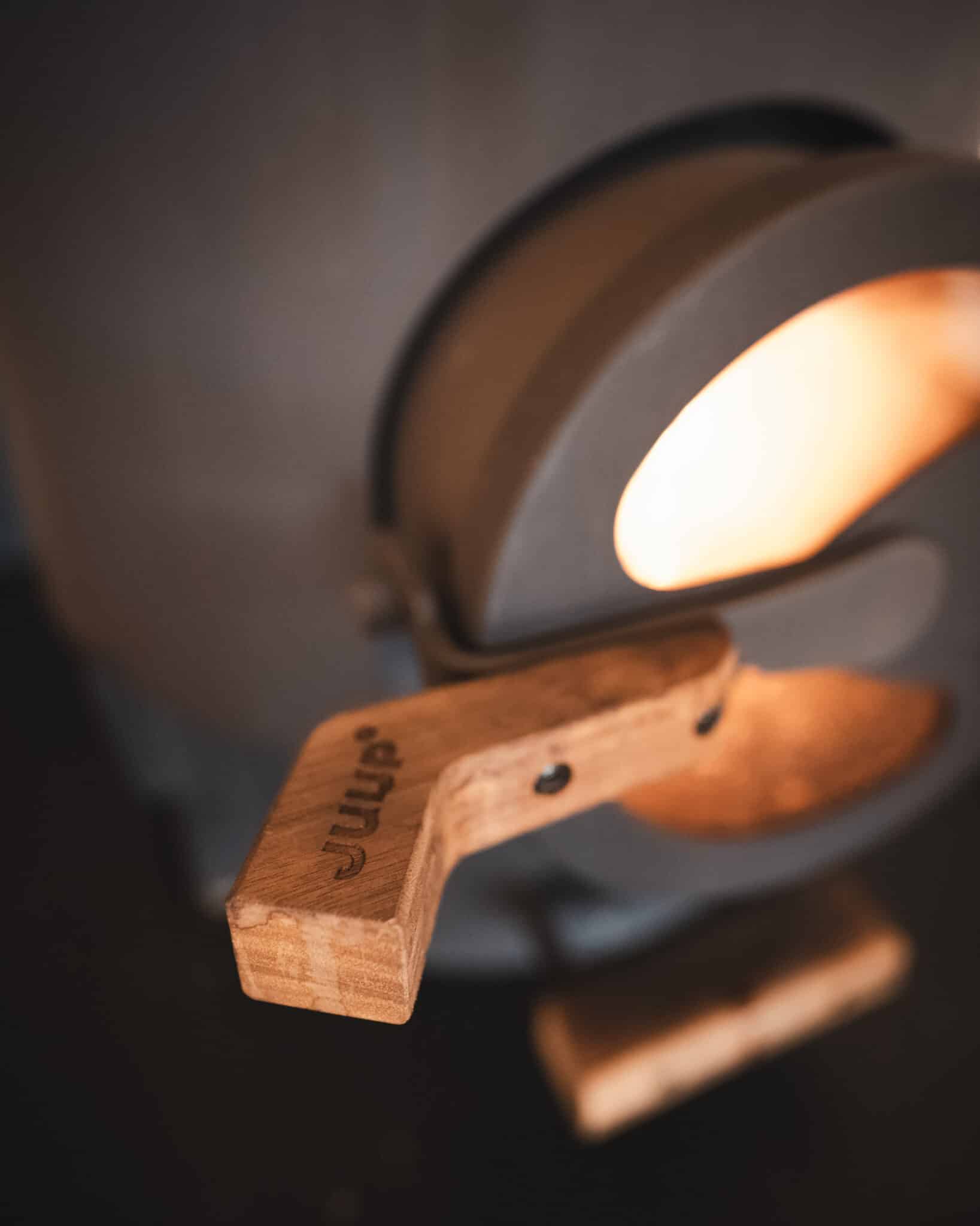

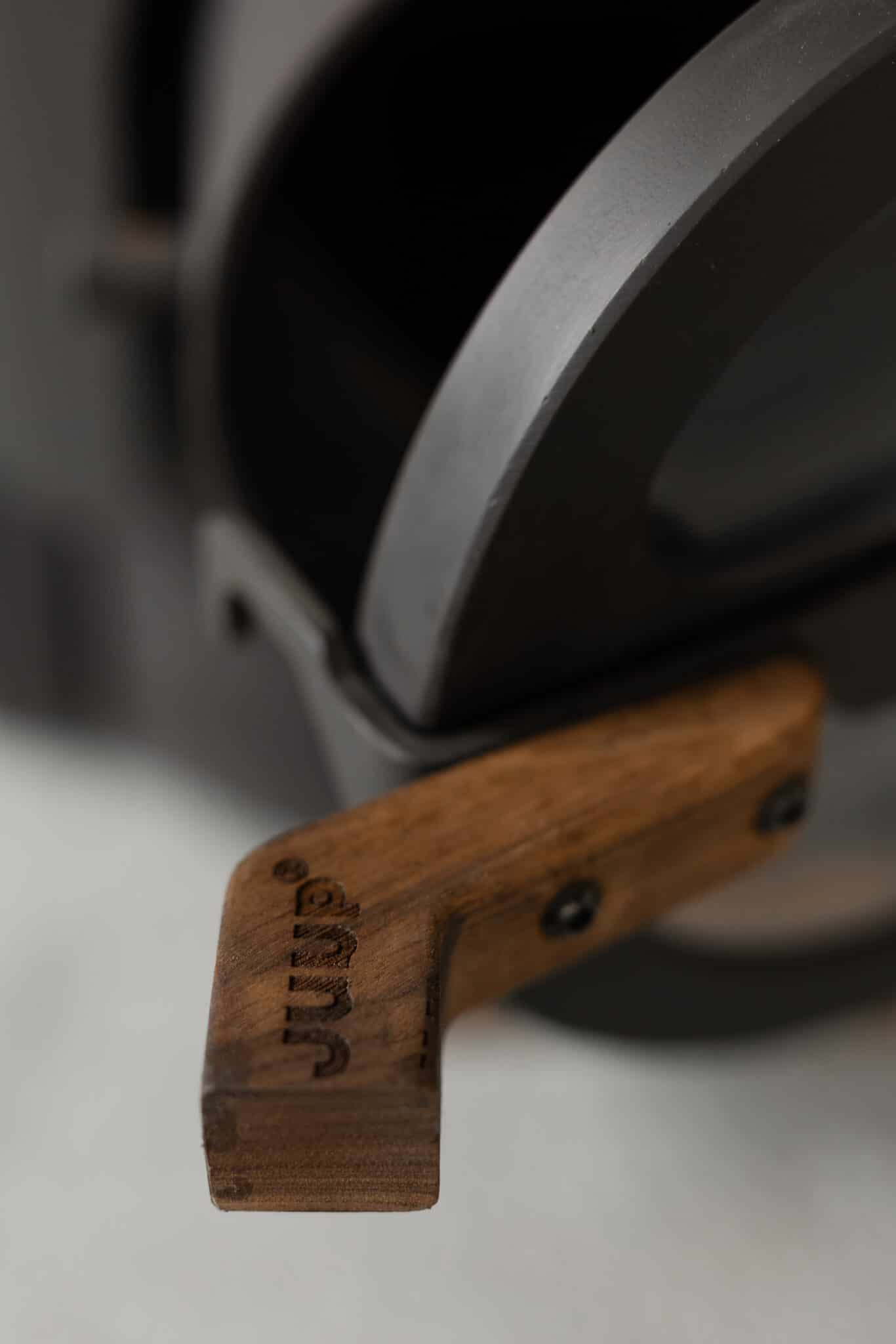

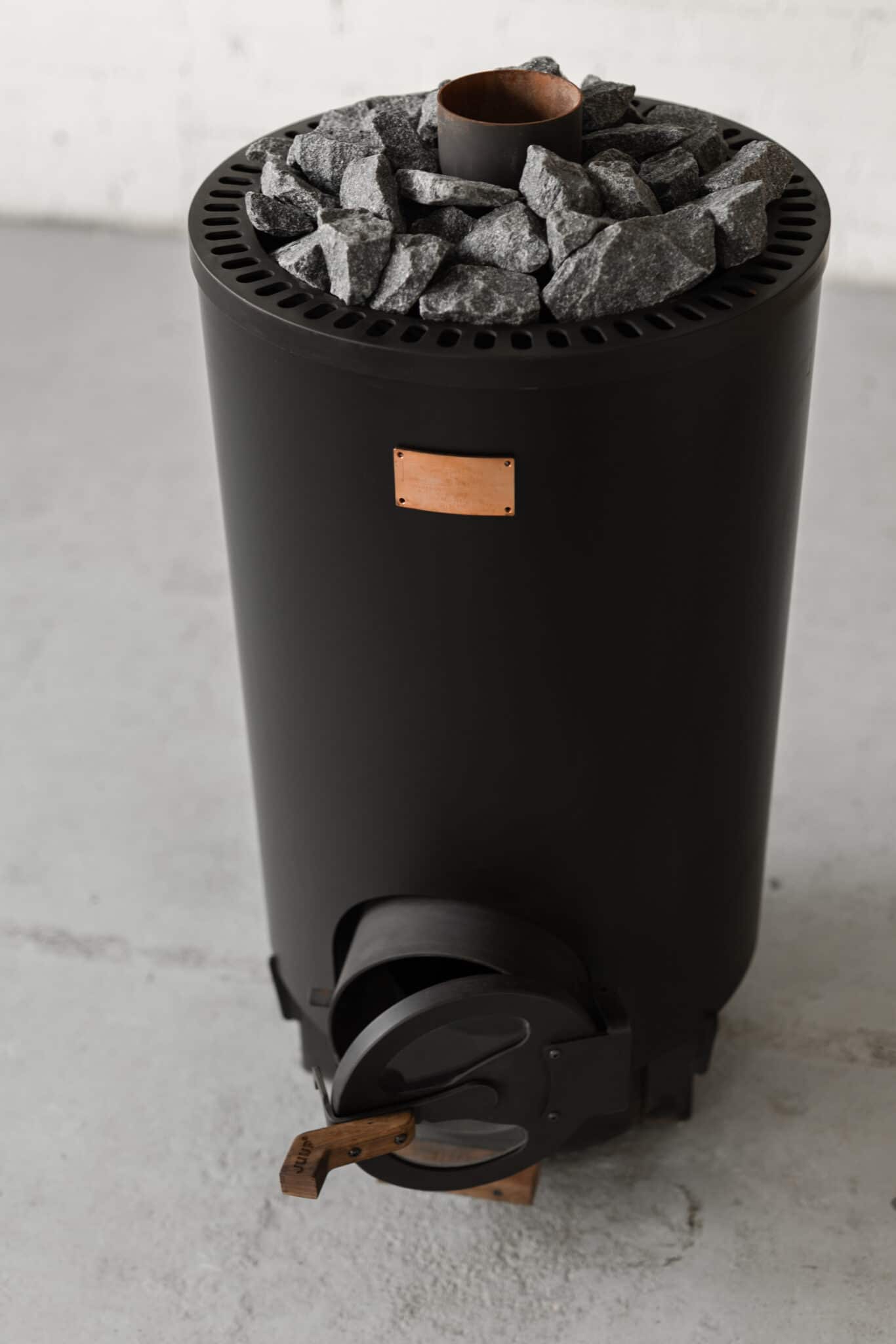

Juup Iivari can be ordered with either rear or vertical smoke flue. The walnut handles shown in the pictures are available at an additional cost.
Make sure to check out Iivari Punos, which is fitted with an even larger stone cradle!
COMPACT STOVE FOR LONGER STEAM
Juup Iivari is the next generation of Juup Original, born of the real need of our customers. As its predecessor, Juup Iivari offers versatile löylys, but is designed for smaller sauna rooms. The stove is robust, and will serve for decades.
1490,00 € – 1560,00 € incl. 24% VAT
Juup Iivari stove is a Finnish handicraft.
A Finnish sauna innovation designed, developed and built by sauna enthusiasts. Already in three generations.
The easy-to-use and CE-marked stove heats up quickly, using less wood than traditional wood-burning stoves.
An efficient stove produces less emissions and studies* show that the Juup Iivari sauna stove’s carbon monoxide emissions are only 0.15% **, one of the lowest values on the market.
The efficiency of the Juup Iivari stove is over 68 % and is suitable for 9 m³ and larger saunas.
Ab Juup Oy has been granted the Avainlippu certification. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs people in Finland.
* Type tested according to EN 15821: 2010. Test facility identification number NB 2450. **red. O2 13 %
Versatile löylys

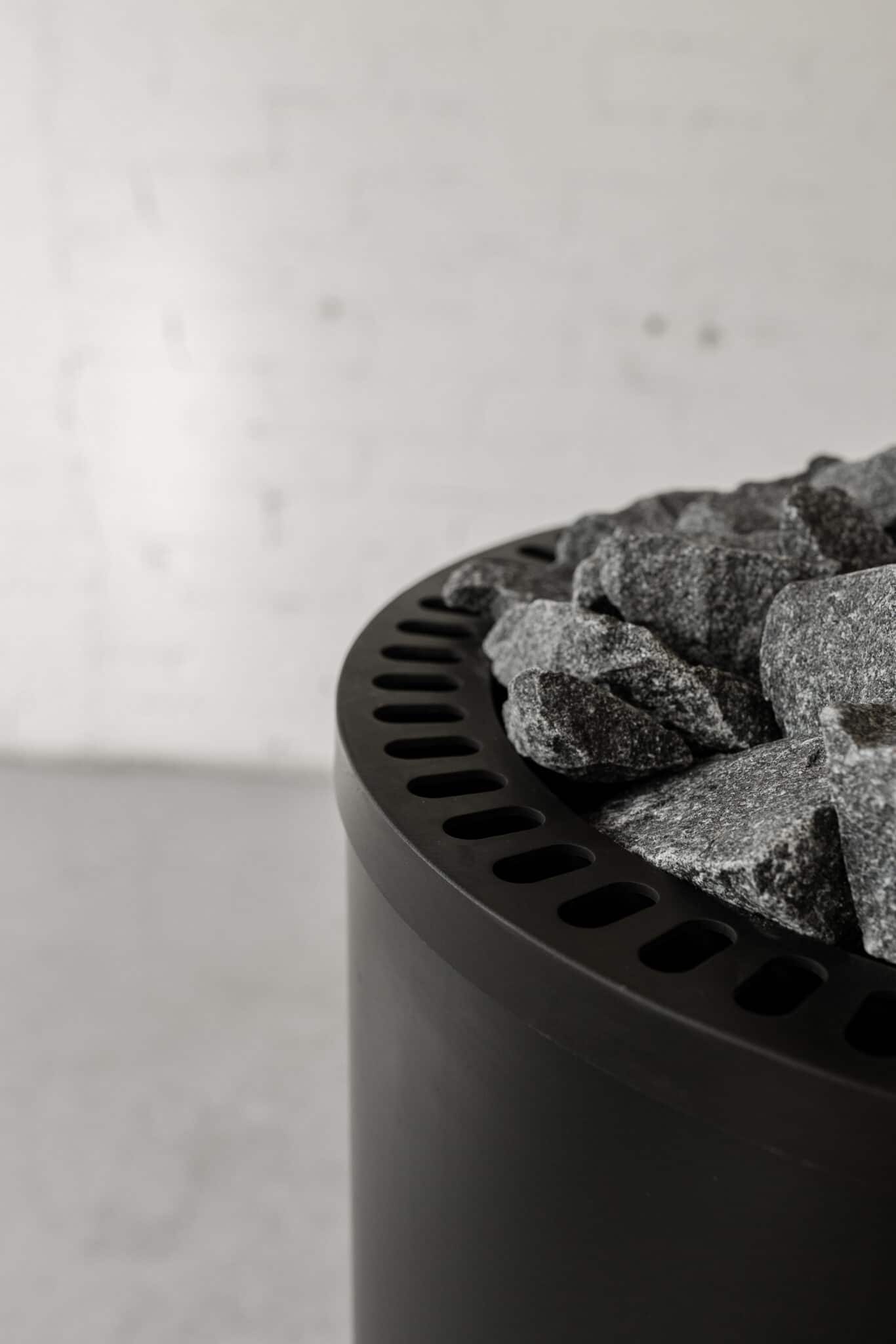

In Juup stoves, the sauna stones are directly above the fireplace in a “stone bowl”.
This allows the stones to heat up quickly and every drop of water to evaporate into the sauna. The water that does not immediately evaporate on contact with the hot stones drains down to the bottom of the bowl and gradually evaporates. This results in soft, humid and long-lasting löylys.
By adjusting the temperature of the stove and the amount of water, you can create exactly the kind of löylys you like. Sharp löylys are created when you throw small amounts of water onto a hot stove several times. But if you like soft and humid löylys, pour more water into a stove at lower temperature. This creates a steam bath-like löyly.
Technical information
Sauna room volume (min / max) | 9–18 m³ |
Temperature class required for smoke flue | T600 |
Connection hole diameter | 115 mm |
Weight of stones (max.) | A 45 / B 85 kg |
Net weight | 117 kg |
Width x Depth x Height | 515 x 609 x 910 mm |
+ adjustable feet | 0 – 50 mm |
Safety distances (combustible materials, sides / top) | 200 / 1100 mm |
Safety distances (non-combustible materials) | 50 mm |
Hatch size | Ø 210 mm |
Performance level at rated power
Flue gas temperature (average – max) | 436,1 – 519,4 °C |
Rated power | 27,2 kW |
Heat output into the sauna room | 18,6 kW |
Carbon monoxide emissions (red. O₂ 13 %) | 2115 mg/m³ (n) |
Carbon monoxide emissions % (red. O₂ 13 %) | 0,15 % |
Overall efficiency | 68,3 % |
Ignition charge | 5 kg |
Additional contribution | 2 kg |
The Juup® Iivari stove has been type-tested according to EN 15821: 2010.
Identification number of the test facility: NB 2450.
Instructions & Brochures
Parts of the stove
A1. Smoke flue (side mounting) Ø 115 mm
A2. Smoke flue (top mounting) Ø 115 mm
B. Stone pot
C. Fire pit
D. Sheath (mantle)
E. Stone net (Model B)
F. Hatch (Ø 210 mm)

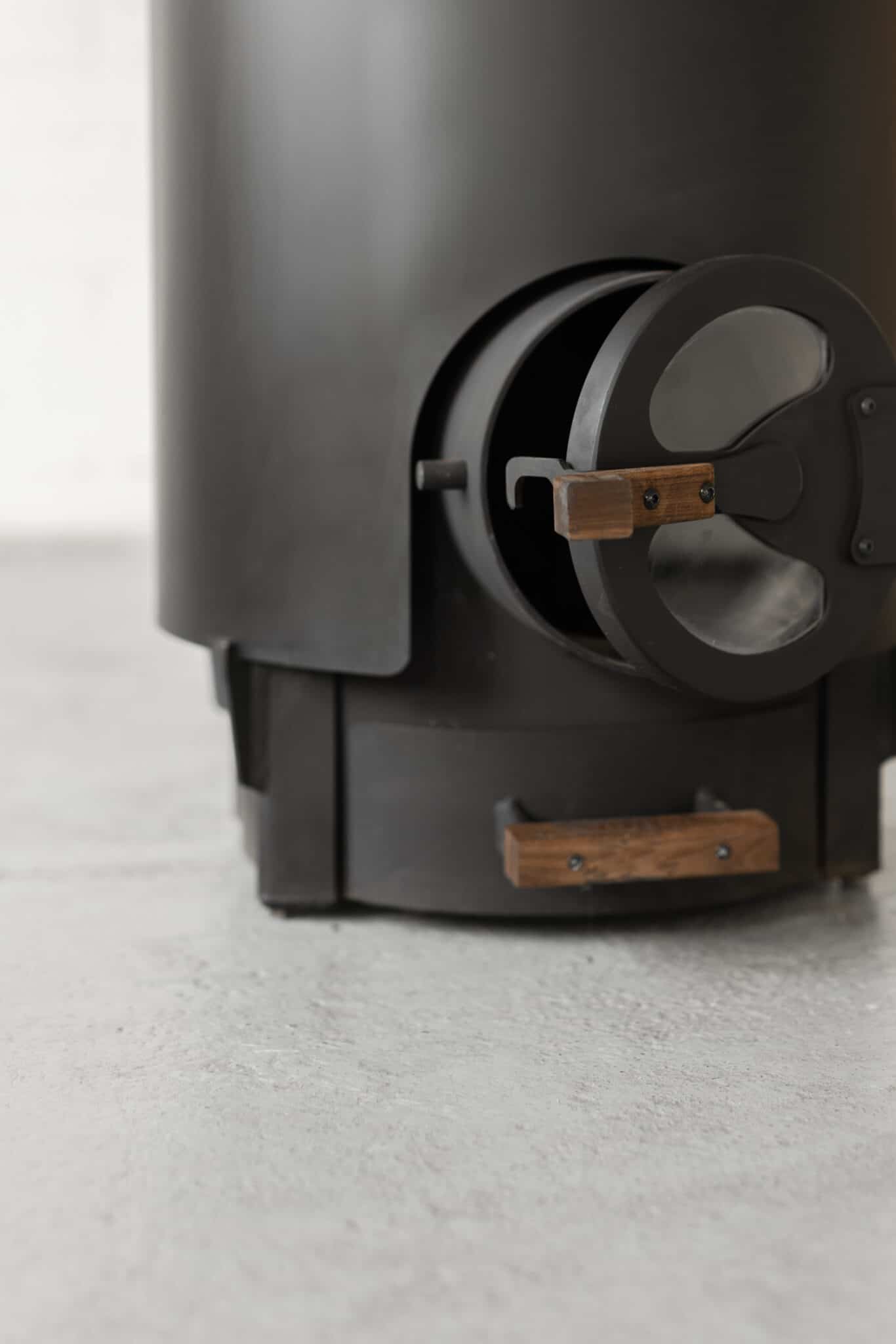

G. Ash hatch and draft adjustment
Warranty
The heater body and fireplace are constructed of 3 mm carbon steel and the fireplace has only one weld seam. This allows the stove to last from one generation to the next. The original stoves, built by Gösta Juup in the 1950s, are still in use.
Thanks to its solid and durable construction, we grant the stove a 10-year warranty in home use.
