Juup Iivari – Punos (Plait)

Artesan sauna stove

COMPACT SAUNA STOVE WITH DISTINCT DESIGN

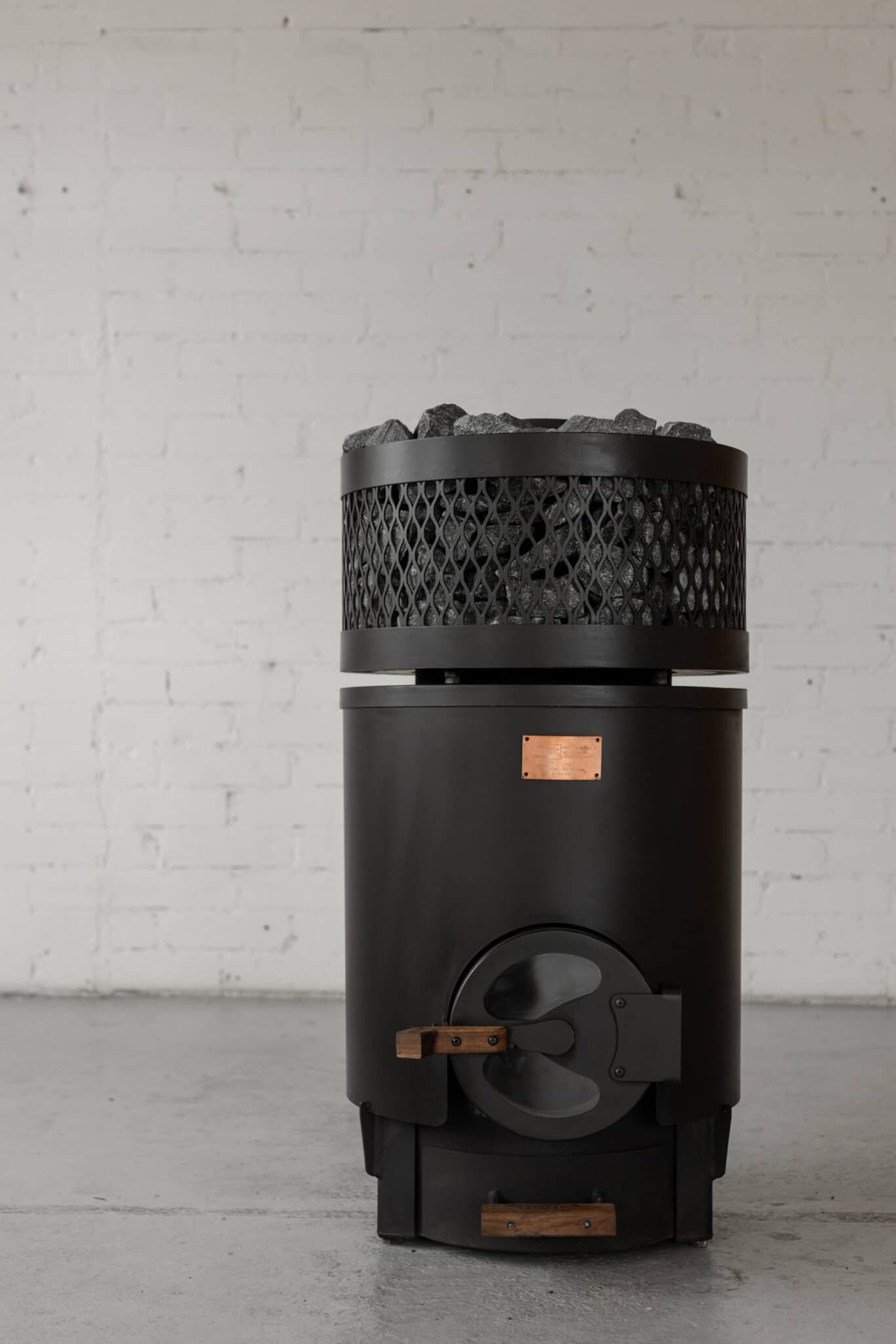

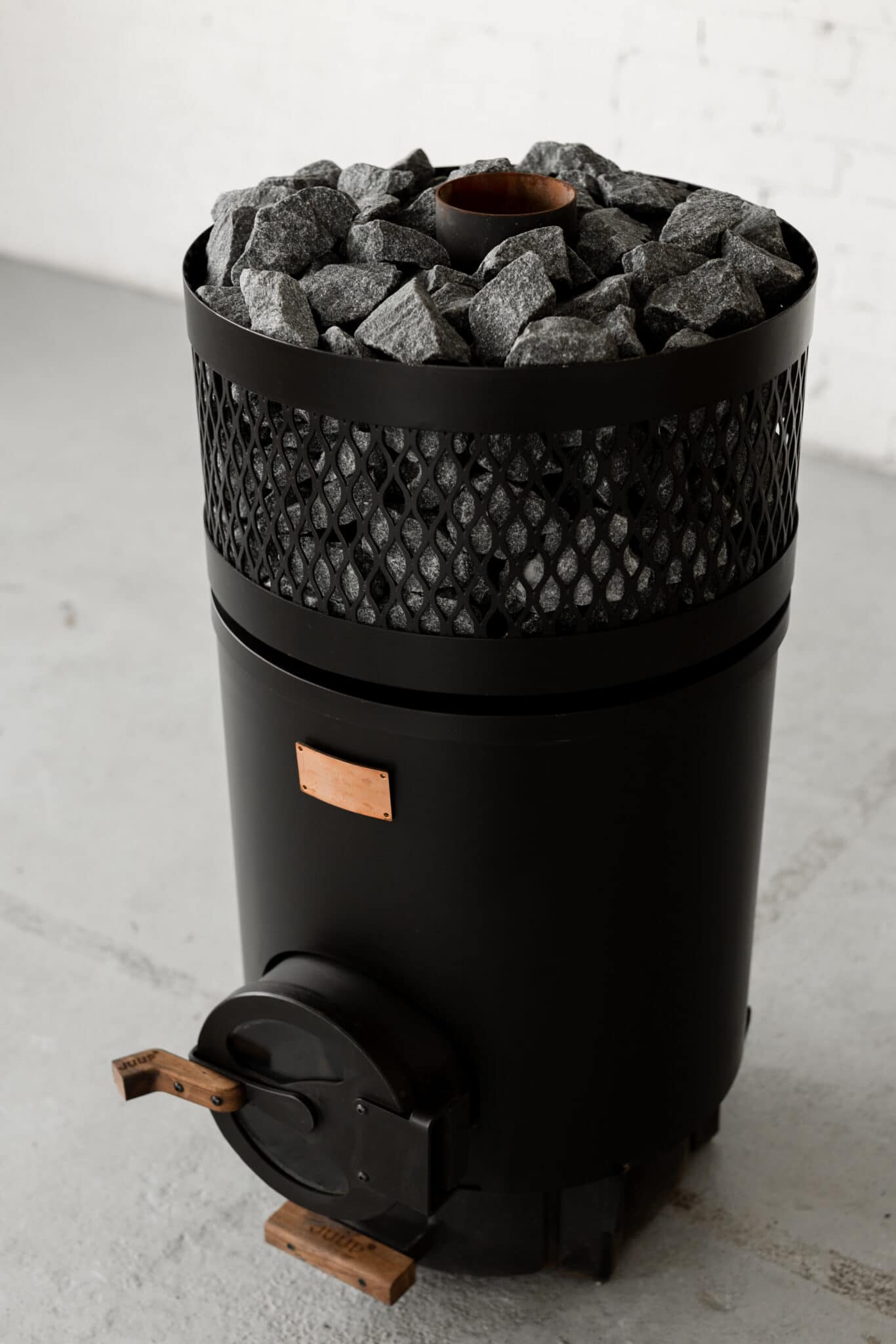

The Juup Iivari Punos is structurally very similar to its predecessor, the Juup Original, but it is also suitable for smaller sauna rooms (9–18m³). As its predecessor, Iivari Punos offers versatile löylys, is robust and will serve for decades.

Juup Iivari Punos is part of the smaller Iivari line, and is fitted with a larger stone cradle compared to the base model Juup Iivari. The stone cradle fits approx. 85 kg of sauna stones, depending on the size and material of the stones. This way Punos offers longer löylys and stores heat better than the base model Iivari, but the heating time is naturally a bit longer.

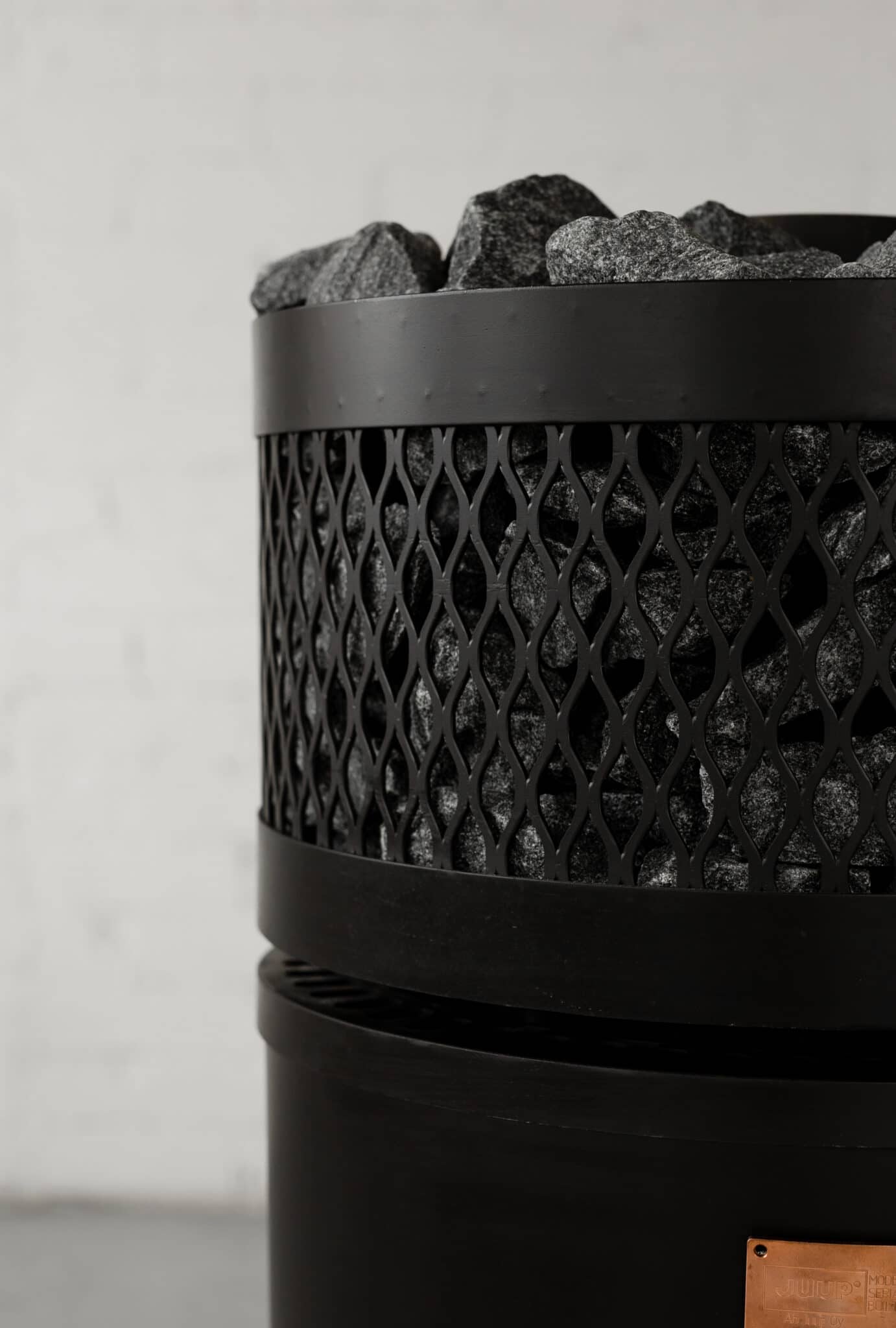

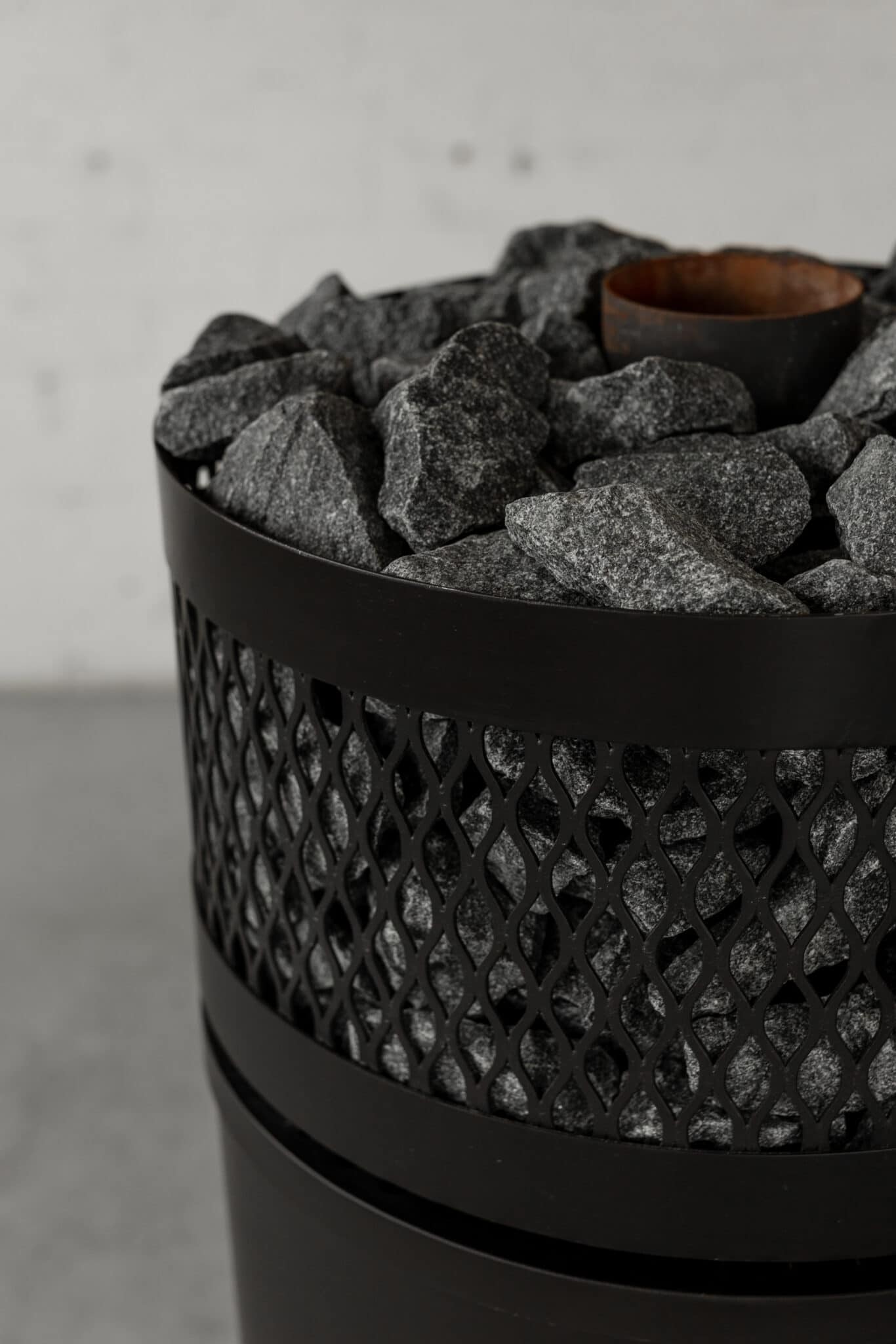

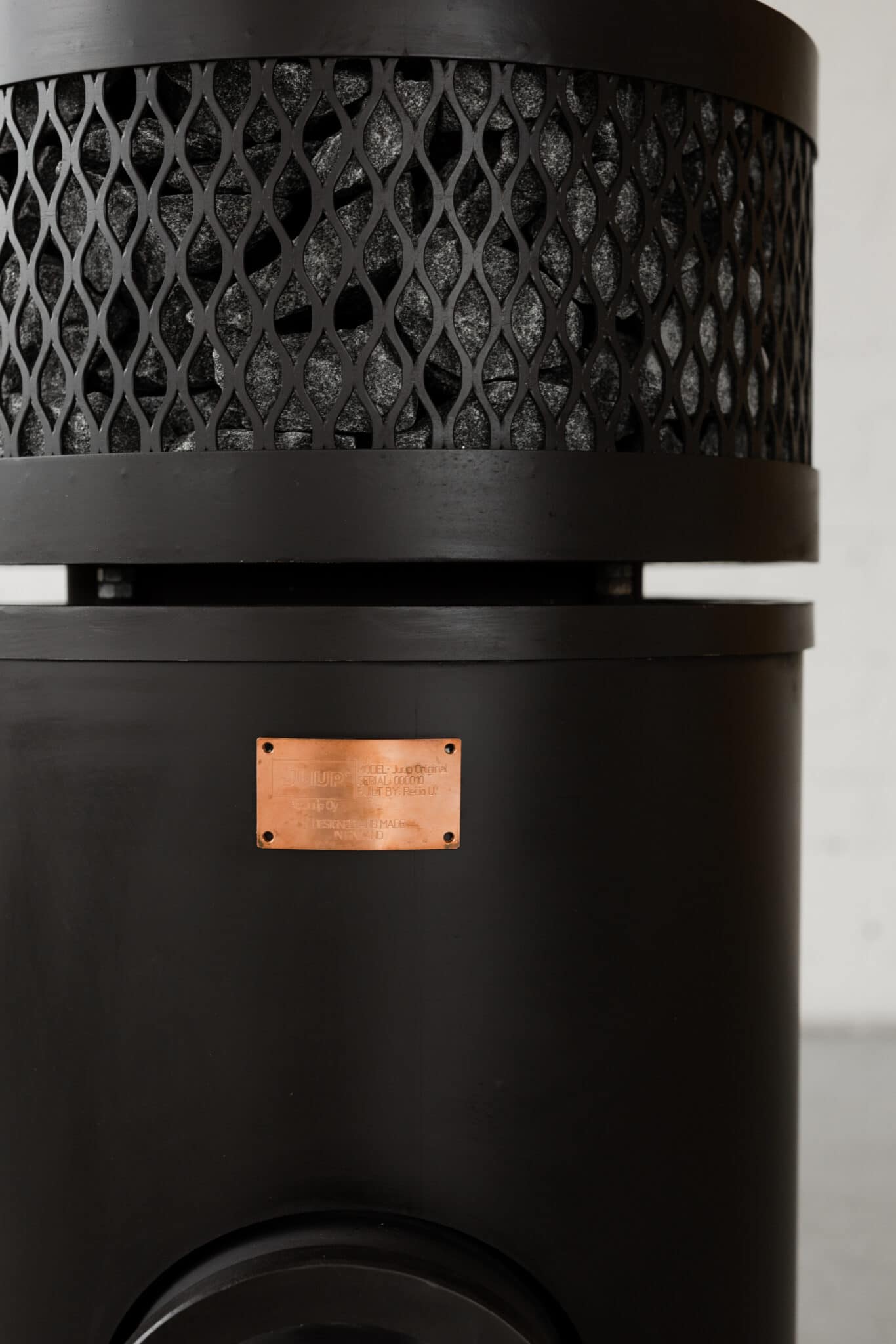

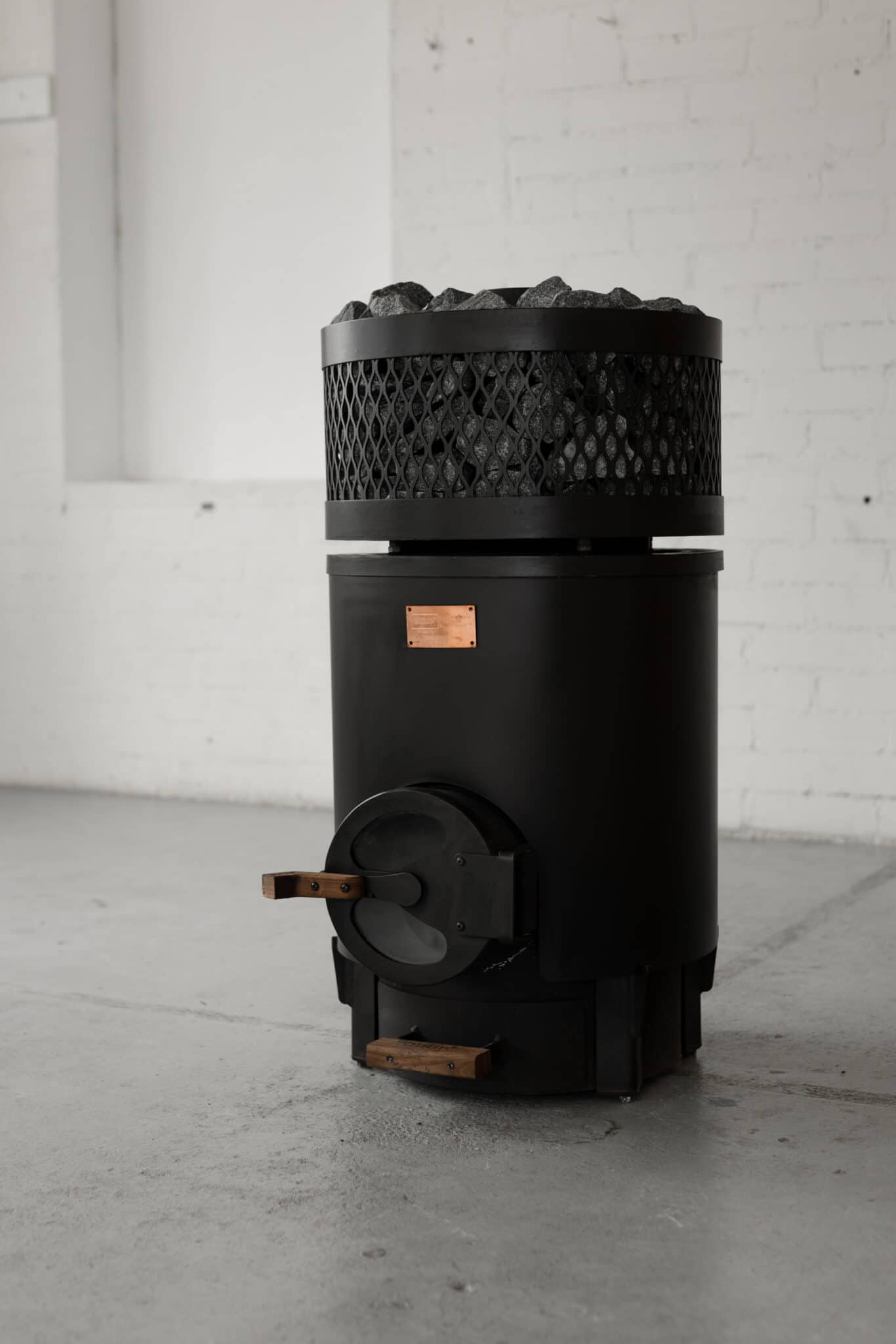

The upper part of the stove is a mesh, allowing you to pour and throw löyly onto the edges of the stone compartment as well. The mesh makes Punos stand out visually from other Juup sauna stoves.

Thanks to its robust and durable construction, the stove carries a 10-year warranty in home use.

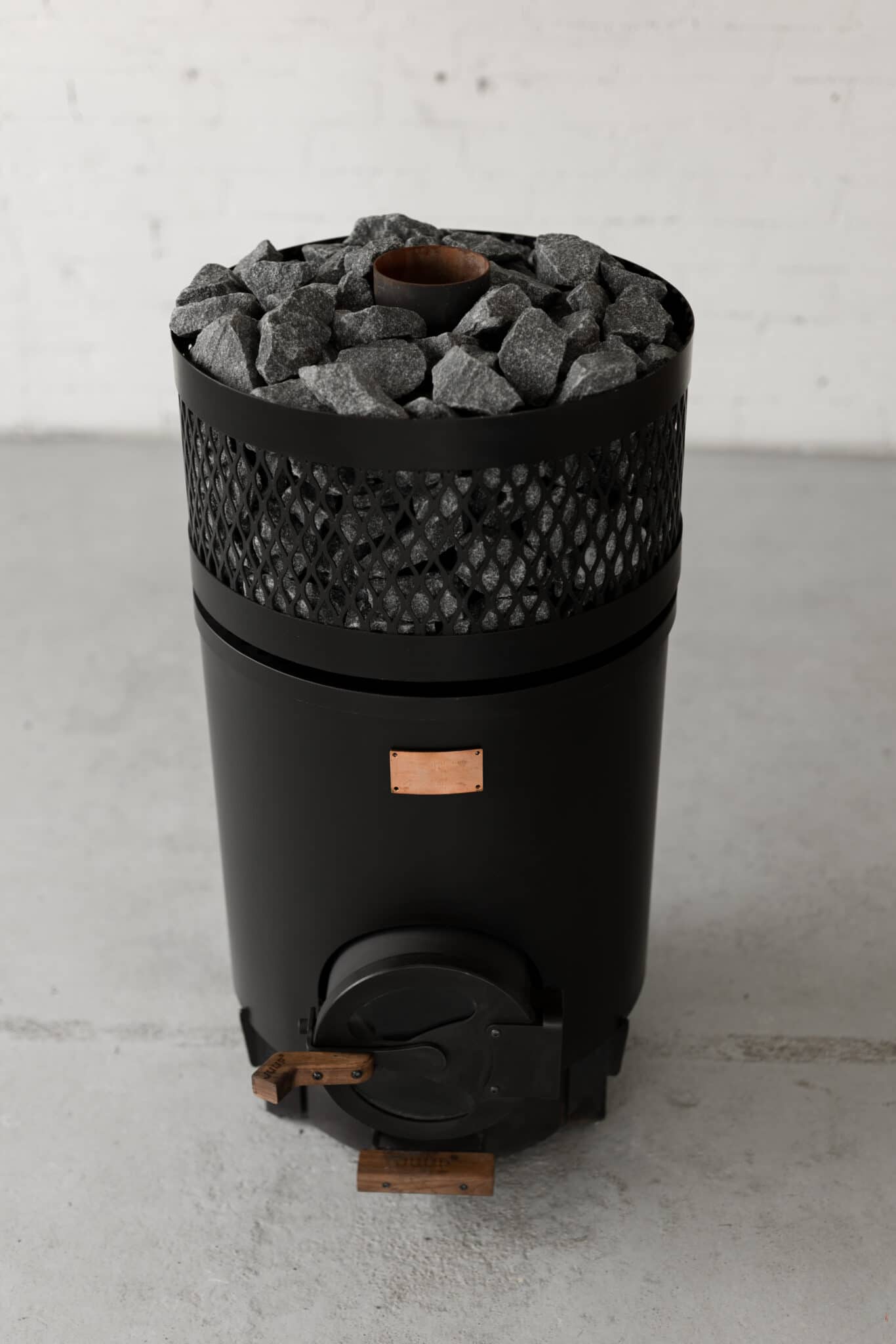

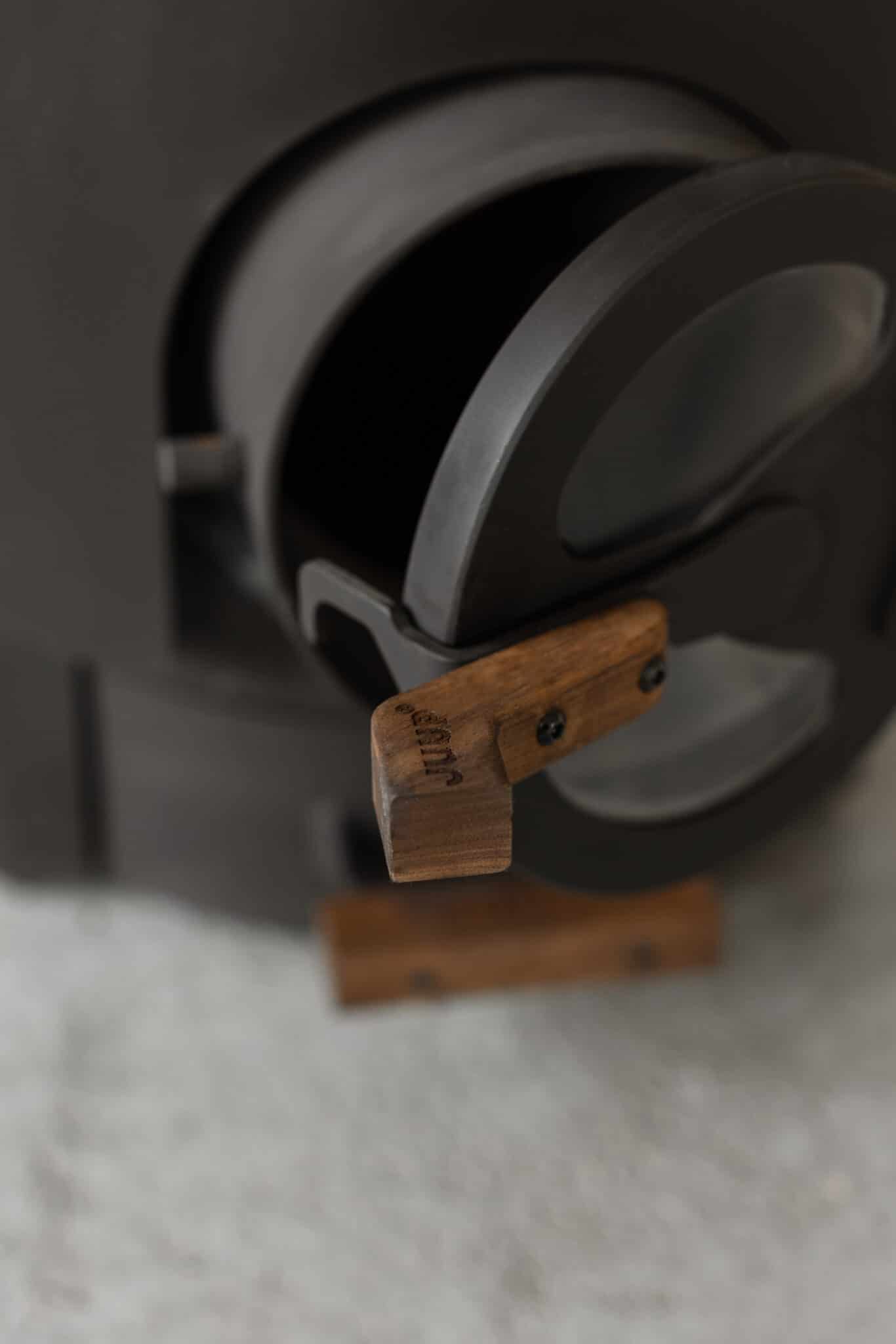

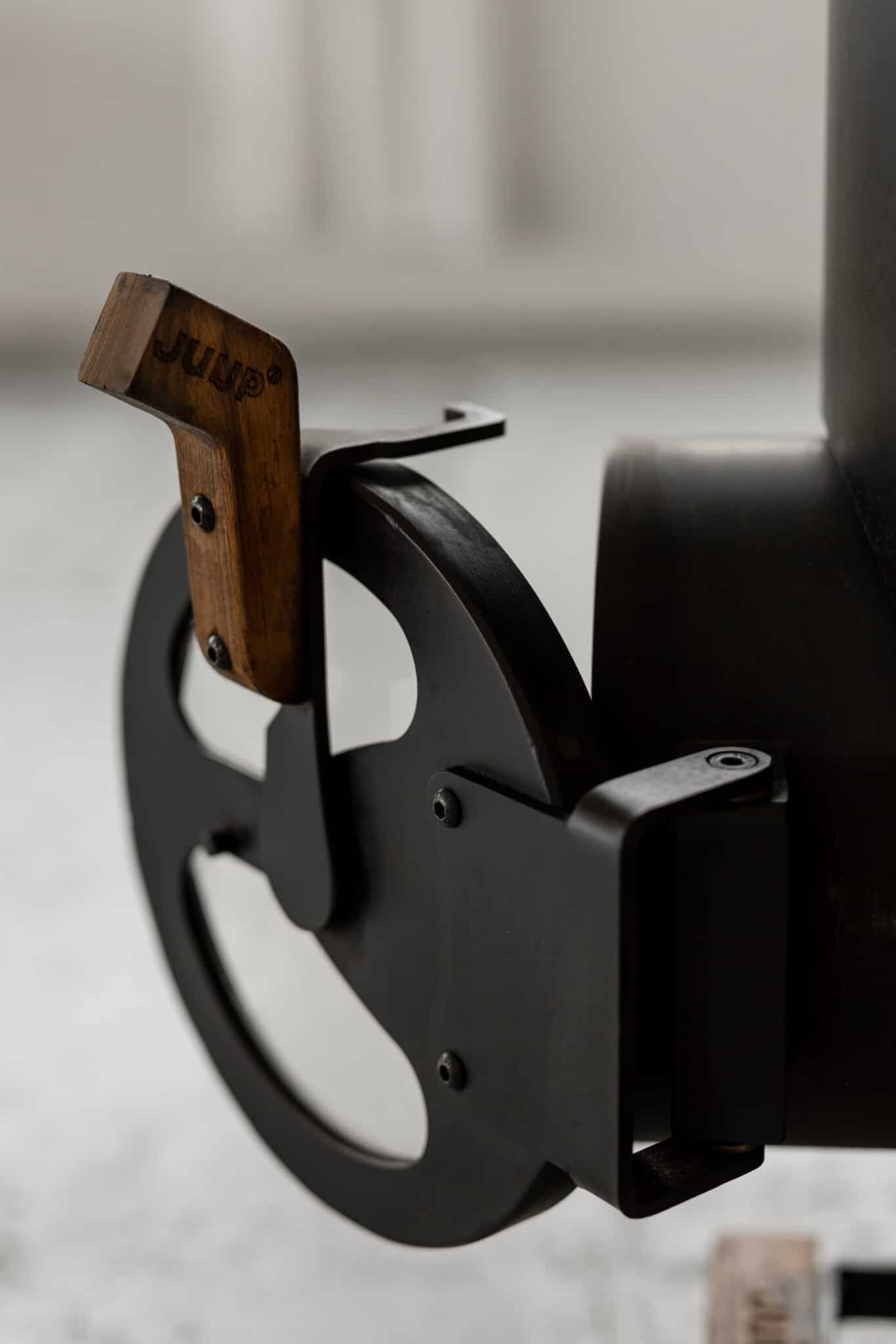

In Iivari stoves, there is a large glass door as standard. Juup Iivari Punos can be ordered with either rear or vertical smoke flue. The walnut handles shown in the pictures are available at an additional cost.

Make sure to also check out the Juup Iivari base model here!

Delivery time for stoves varies from 2 to 4 weeks depending on order quantities. The delivery time can be inquired in advance by e-mail myynti@juup.fi or by phone on 040 737 1571.

COMPACT SAUNA STOVE WITH DISTINCT DESIGN

Juup Iivari Punos is the next generation of Juup Original, and our second model in the smaller Iivari line. Juup Iivari Punos is very similar in structure to its predecessor, but it is better suited for smaller sauna rooms. The design of Iivari Punos (Plait) influences its name, as it features a plait-like mesh, giving the sauna stove distinct visual looks. Iivari Punos offers you versatile löylys, and will serve you for decades.

1750,00 1820,00  incl. 24% VAT

Juup Iivari stove is a Finnish handicraft.

A Finnish sauna innovation designed, developed and built by sauna enthusiasts. Already in three generations.

The easy-to-use and CE-marked stove heats up quickly, using less wood than traditional wood-burning stoves.

An efficient stove produces less emissions and studies* show that the Juup Iivari sauna stove’s carbon monoxide emissions are only 0.15% **, one of the lowest values on the market.

The efficiency of the Juup Iivari stove is over 68 % and is suitable for 9 m³ and larger saunas.

Ab Juup Oy has been granted the Avainlippu certification. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs in Finland.

* Type tested according to EN 15821: 2010. Test facility identification number NB 2450. **red. O2 13 %

Versatile löylys

We wanted to develop a stove that provides the best and most versatile steam. We have taken the long, moist, and soft steam of a smoke sauna as our model.

The ‘secret’ of the steam in smoke saunas lies in the way the stones are heated. The stones at the bottom get incredibly hot, while the surface stones remain relatively lukewarm throughout the sauna session. When water is poured onto the stones, it doesn’t evaporate immediately from the surface stones, but flows down to the bottom of the stone compartment where evaporation occurs. As this steam travels through the cooler stones, a condensation process begins which softens and moistens the steam.

In Juup stoves, the stones are directly above the firebox in a “stone bowl.” This allows the stones to heat up quickly and every drop of water to evaporate into the sauna. The stones at the bottom heat up first and remain hot throughout the sauna session, just like in a smoke sauna.

The stones on the surface of the stone bowl heat up slowly, allowing for the creation of different types of steam during the sauna session. The water that doesn’t evaporate upon contact with the hot stones flows down to the bottom of the bowl and evaporates gradually. This results in soft, moist and long-lasting löyly.

By adjusting the stove’s temperature and the amount of water, you can create exactly the kind of steam that you like. Crisp steam is created when you throw small amounts of water onto the hot stones on the edges frequently. If you prefer soft and moist steam, you can pour a larger amount of water on the lukewarm stones. This creates a steam bath-like löyly.

Technical information

Sauna room volume (min / max)
9–18 m³
Temperature class required for smoke flue
T600
Connection hole diameter
115 mm
Weight of stones (max.)
A 55 / B 95 kg
Net weight
117 kg
Width x Depth x Height
515 x 609 x 910 mm
+ adjustable feet
0 – 50 mm
Safety distances
(combustible materials, sides / top)
200 / 1100 mm
Safety distances
(non-combustible materials)
50 mm
Hatch size
Ø 210 mm

Performance level at rated power

Flue gas temperature (average – max)
436,1 – 519,4 °C
Rated power
27,2 kW
Heat output into the sauna room
18,6 kW
Carbon monoxide emissions (red. O₂ 13 %)
2115 mg/m³ (n)
Carbon monoxide emissions % (red. O₂ 13 %)
0,15 %
Overall efficiency
68,3 %
Ignition charge
5 kg
Additional contribution
2 kg

The Juup® Iivari stove has been type-tested according to EN 15821: 2010.

Identification number of the test facility: NB 2450.

Instructions & Brochures

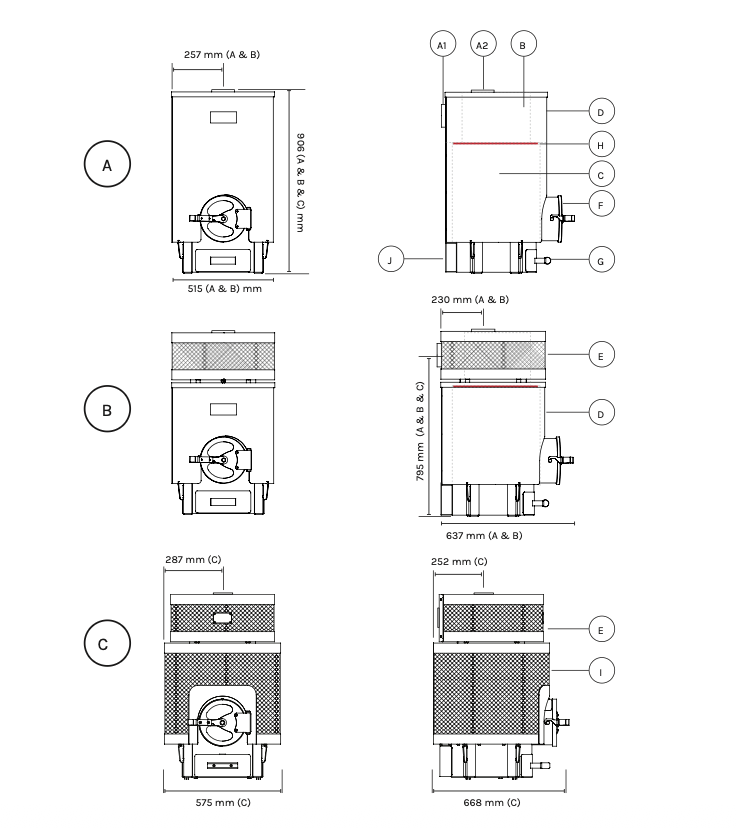

Parts of the stove

A1. Smoke flue (side mounting) Ø 115 mm
A2. Smoke flue (top mounting) Ø 115 mm
B. Stone pot
C. Fire pit
D. Sheath (mantle)
E. Stone net (Model B)
F. Hatch (Ø 210 mm)
G. Ash hatch and draft adjustment

Warranty

The heater body and fireplace are constructed of 3 mm carbon steel and the fireplace has only one weld seam. This allows the stove to last from one generation to the next. The original stoves, built by Gösta Juup in the 1950s, are still in use.

Thanks to its solid and durable construction, we grant the stove a 10-year warranty in home use.
