Juup Original – Matte black
Artesan sauna stove
Versatile löylys

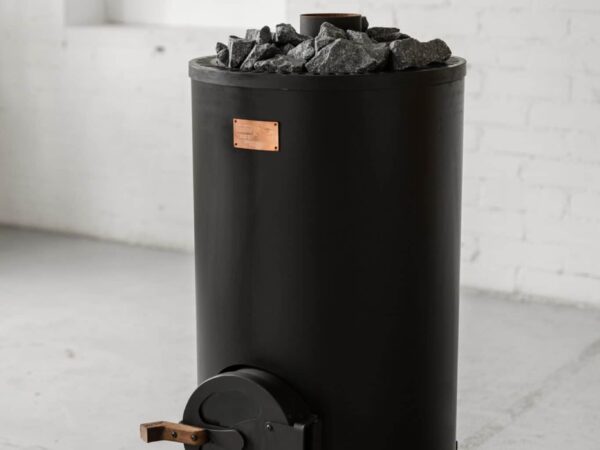

The stones in the stove are directly above the fireplace in a stone pot, where the stones heat up quickly and every drop of water evaporates into the sauna. Water that does not evaporate when in contact with hot stones drains down to the bottom of the pot and gradually evaporates. This results in humid, soft and long-lasting löyly. By adjusting the temperature of the stove and the amount of water, everyone can enjoy löyly of their own liking.
Finnish handicraft
Each Juup artisan stove is unique. To ensure uncompromising quality and durability for decades, one and the same person will manufacture the stove from start to finish. Each stove has a nameplate showing the stove model, serial number and the name of the builder. The stove has been granted the Finnish Avainlippu. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs in Finland.
Juup Original can be ordered with a rear or vertical smoke flue.
Delivery time for stoves varies from 2 to 4 weeks depending on order quantities. The delivery time can be inquired in advance by e-mail myynti@juup.fi or by phone on 040 737 1571.
Versatile löylys & Finnish crafts

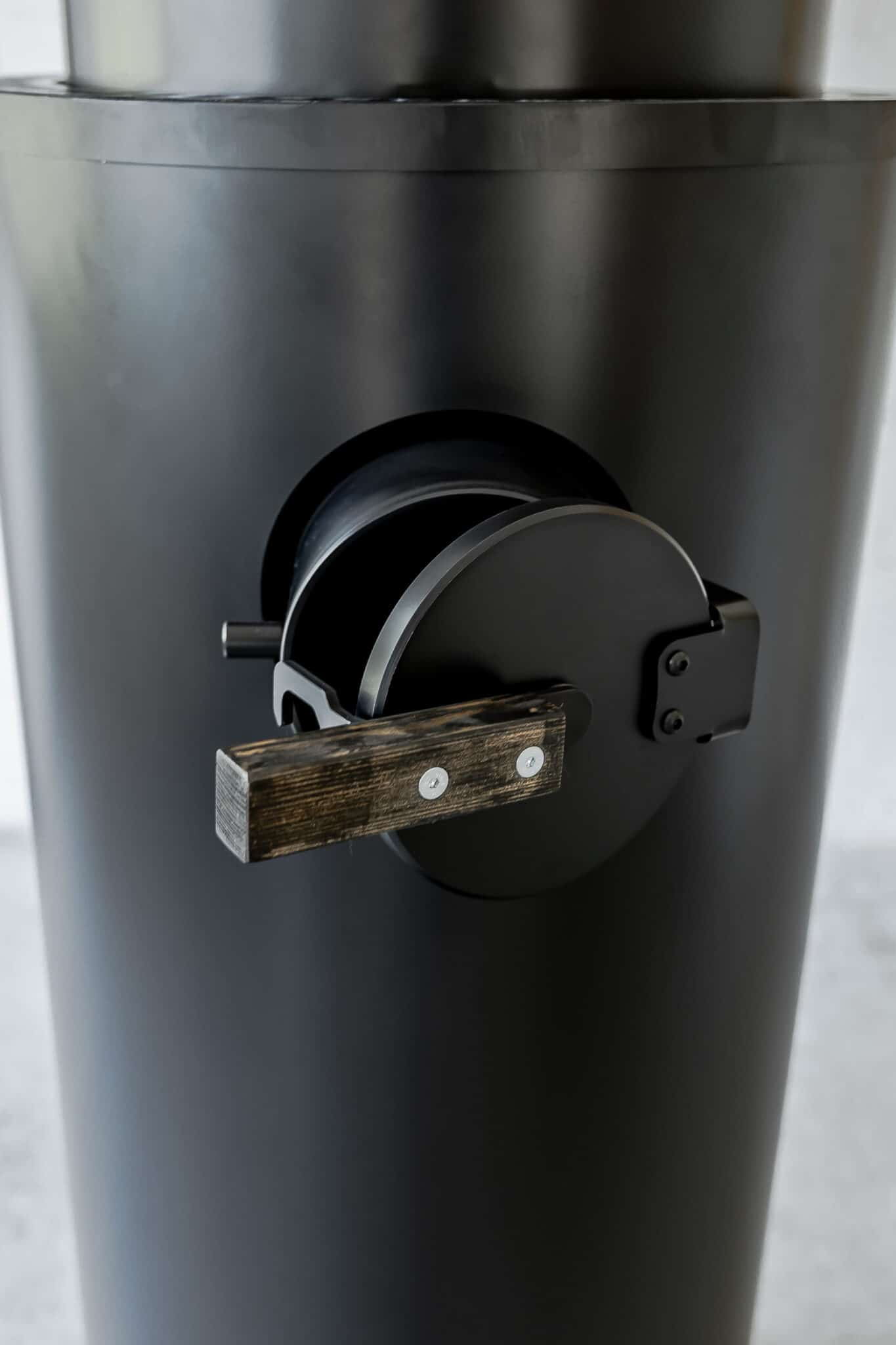

Painted in matte black, Juup Original is an easy-to-use artisan stove that is suitable for saunas of 14 m³ and larger. The CE-marked wood-burning stove heats up quickly and gives long-lasting humid löyly, using less wood than traditional wood-burning stoves. In the Original stove, there is a glass bottom door as standard, while the top door is solid and made of steel.

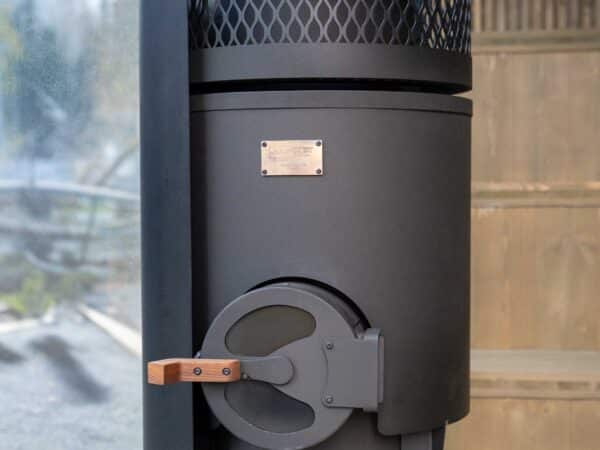

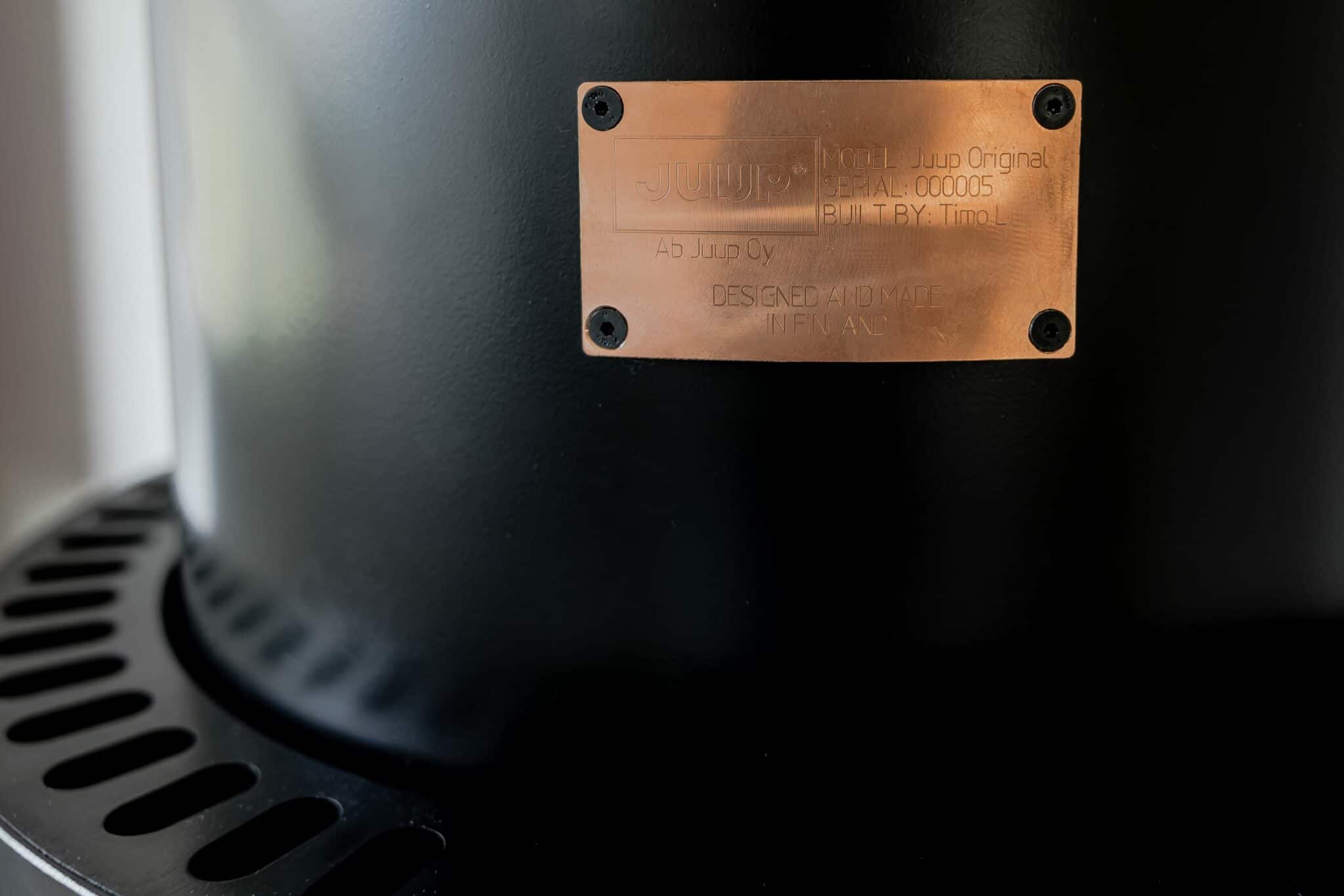

The handmade stove also comes with a copper plate showing the model, serial number and the name of the builder.
1930,00 € – 2010,00 € incl. 24% VAT
Juup Original® stove is Finnish handicraft.
A Finnish sauna innovation designed, developed and built by sauna enthusiasts. Already in three generations.
The easy-to-use and CE-marked stove heats up quickly, using less wood than traditional wood-burning stoves.
An efficient stove produces less emissions and studies* show that the Juup® Original sauna stove’s carbon monoxide emissions are only 0.11% **, one of the lowest values on the market.
The efficiency of the Juup® Original stove is over 72 % and is suitable for 14 m³ and larger saunas.
Ab Juup Oy has been granted the Avainlippu certification. Avainlippu is a registered community trademark and guarantees that the product is made in Finland and employs in Finland.
* Type tested according to EN 15821: 2010. Test facility identification number NB 2450. **red. O2 13 %
Versatile löylys
We wanted to develop a stove that provides the best and most versatile steam. We have taken the long, moist, and soft steam of a smoke sauna as our model.
The ‘secret’ of the steam in smoke saunas lies in the way the stones are heated. The stones at the bottom get incredibly hot, while the surface stones remain relatively lukewarm throughout the sauna session. When water is poured onto the stones, it doesn’t evaporate immediately from the surface stones, but flows down to the bottom of the stone compartment where evaporation occurs. As this steam travels through the cooler stones, a condensation process begins which softens and moistens the steam.

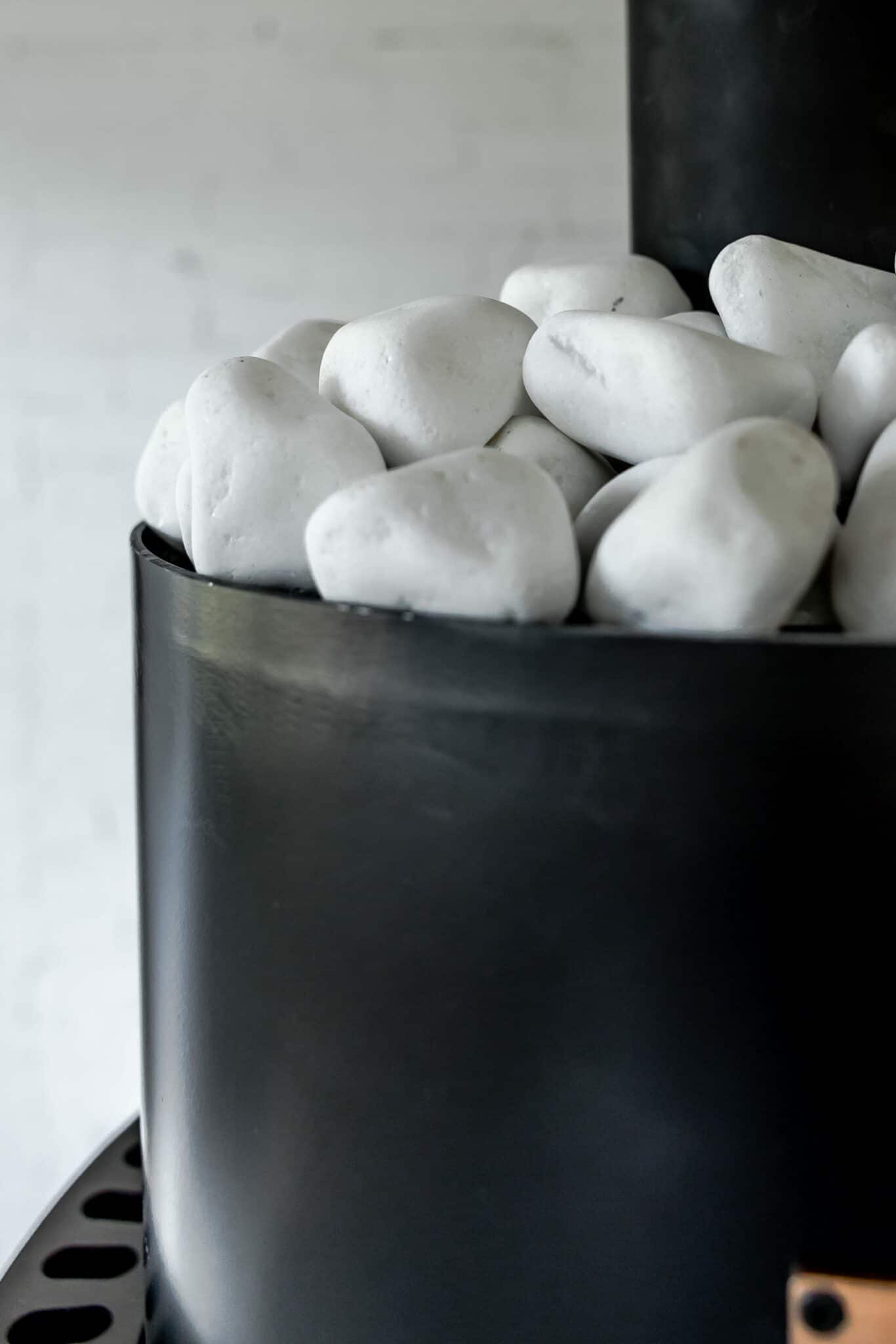

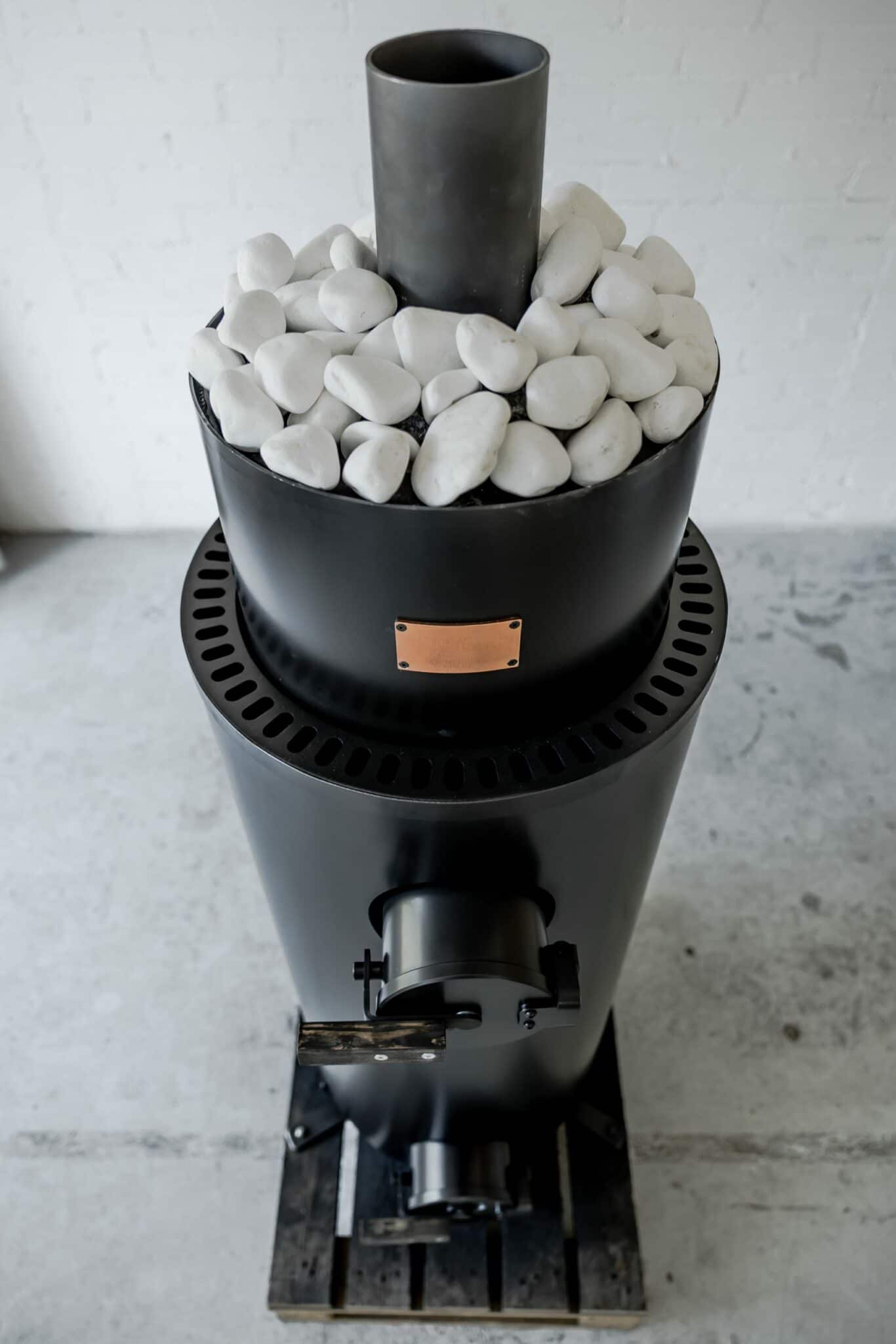

In Juup stoves, the stones are directly above the firebox in a “stone bowl.” This allows the stones to heat up quickly and every drop of water to evaporate into the sauna. The stones at the bottom heat up first and remain hot throughout the sauna session, just like in a smoke sauna.
The stones on the surface of the stone bowl heat up slowly, allowing for the creation of different types of steam during the sauna session. The water that doesn’t evaporate upon contact with the hot stones flows down to the bottom of the bowl and evaporates gradually. This results in soft, moist and long-lasting löyly.
By adjusting the stove’s temperature and the amount of water, you can create exactly the kind of steam that you like. Crisp steam is created when you throw small amounts of water onto the hot stones on the edges frequently. If you prefer soft and moist steam, you can pour a larger amount of water on the lukewarm stones. This creates a steam bath-like löyly.
Fast and economical
The Juup® Original stove challenges the operation of traditional stoves. The stove is designed primarily to heat the sauna room and secondarily the stone nest. When the sauna room warms up, your toes do not freeze, even if the stone nest is above your feet.
Utilizing thermodynamics, the stove cycles the cold sauna room air between the mantle and the fireplace, from the bottom of the stove. This air heats up inside the stove and blows out hot from the top of the stove. Thanks to this, the temperature of the sauna rises steadily and quickly.
Thanks to its two doors, the stove is very easy to light and only needs one nest to warm up, as well as just a few flaps to maintain the temperature. The wood burns purely due to its large combustion space and the measured* carbon monoxide emissions are only 0.11 % **, which is one of the lowest values on the market.
* Type tested according to EN 15821: 2010. Test facility identification number NB 2450. **red. O2 13 %
Technical information
Minimum volume of the sauna room | 14 m³ |
Temperature class required for smoke flue | T600 |
Connection hole diameter | 115 mm |
Weight of stones (max.) | 65 kg |
Net weight | 117 kg |
Width x Depth x Height | 515 x 609 x 1400 mm |
+ adjustable feet | 0 – 50 mm |
Safety distances (combustible materials, sides / top) | 300 / 900 mm |
Safety distances (non-combustible materials) | 50 mm |
Hatch sizes | Ø 150 mm |
Performance level at rated power
Flue gas temperature (average – max) | 386 – 457 °C |
Rated power | 41,3 kW |
Heat output into the sauna room | 29,8 kW |
Carbon monoxide emissions (red. O₂ 13 %) | 1331 mg/m³ (n) |
Carbon monoxide emissions % (red. O₂ 13 %) | 0,11 % |
Overall efficiency | 72,2 % |
Ignition charge | 5,5 kg |
The Juup® Original stove has been type-tested according to EN 15821: 2010.
Identification number of the test facility: NB 2450.
Instructions & Brochures
Here you can download the Juup® Original operating and installation instructions as well as the heating instructions.
Parts of the stove
A1. Smoke flue in side installation
A2. Smoke flue for vertical installation
B. Stone pot
C. Inner frame
D. Filling hatch (Ø 150 mm)
E. Outer sheath (mantle)
F. Ignition hatch (Ø 150 mm)
G. Ash hatch and draft adjustment
Warranty
The heater body and fireplace are constructed of 3 mm carbon steel and the fireplace has only one weld seam. This allows the stove to last from one generation to the next. The original stoves, built by Gösta Juup in the 1950s, are still in use.
Thanks to its solid and durable construction, we grant the stove a 10-year warranty in home use.
